Range Rover L460 Off road Build with 33″ A/Ts & other 4×4 Mods

The L460 fifth-generation Range Rover is one of the most expensive new SUVs you can buy, with an MSRP of around $130k. But look past the flush door handles and the polished luxury, and you’ll find the brand hasn’t forgotten where it came from. Underneath sits real off-road hardware: a two-speed transfer case with proper low range, a locking center and rear differential, height-adjustable air suspension, and a suite of traction tech advanced enough to include electronically disconnecting sway bars.

So it’s no surprise the big Range Rover scores 75.2 points in our off-road capability rating, surpassing the well established rigs like a Nissan Frontier D41 Pro-4x with 72.0 and Tahoe Z71 GMT800 (2000-2006) with 74.5 points. Isn’t it a solid proof that it’s a genuine 4×4 that won’t back down when the trail gets serious?

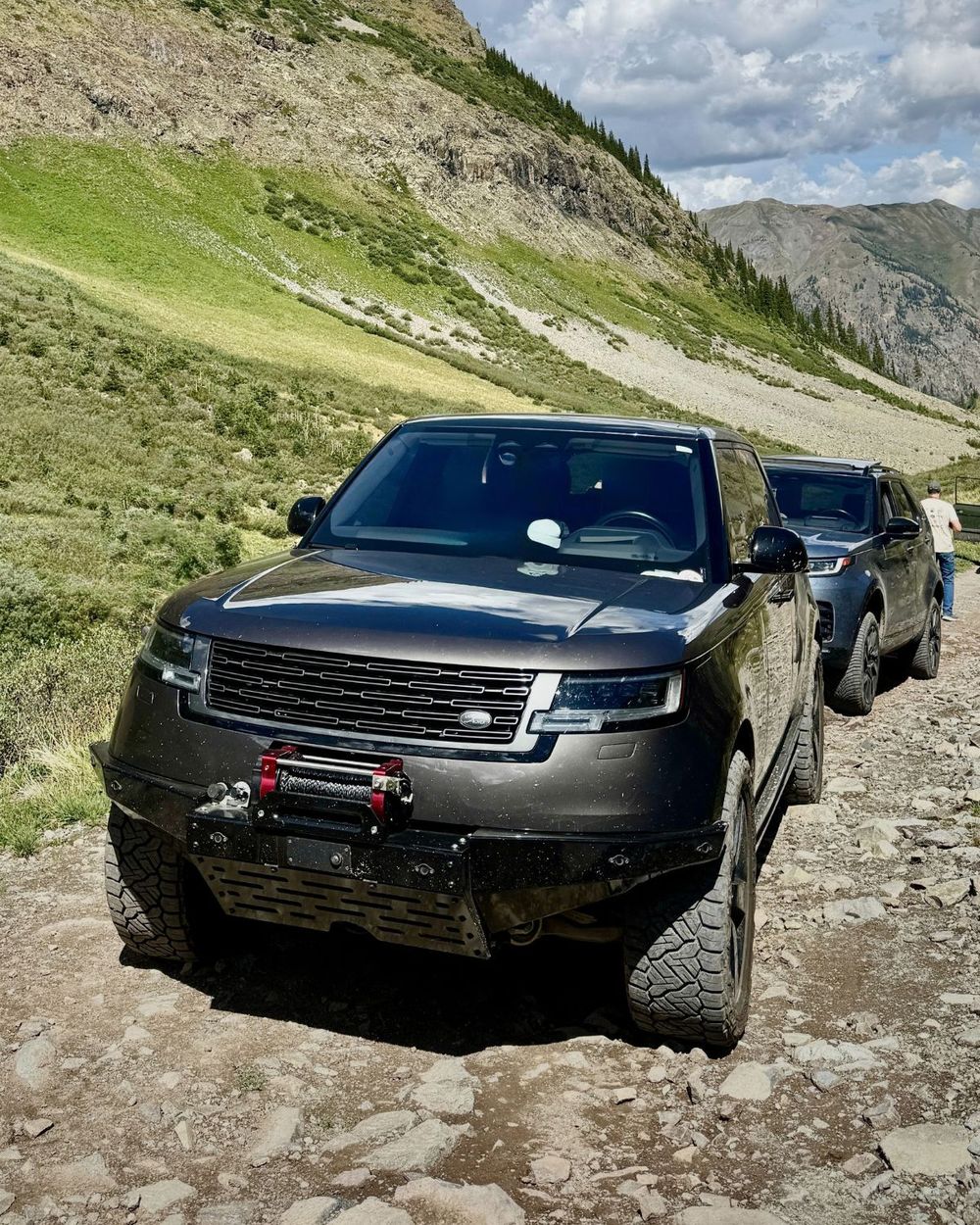

The owner of this 2023 Range Rover P530 SE LWB 7-seater is a seasoned Land Rover fan who’s done a fair share of off-roading in an L322 and L405, from muddy trails to Moab. So stock was never going to be enough.

He’s fitted fully functional aluminum rock sliders, a custom steel winch bumper with a Red Winches Kitotng Cobra, 33″ E-rated Nitto Recon Grappler tires on 22″ Defender wheels, and a full-size matching spare, and it still works as a comfortable daily driver. Read on to see how he turned a $130k luxury cruiser into a Wrangler-challenging trail rig that still looks unassumingly clean.

Category	Modification
Wheels	22″ factory Land Rover Defender wheels with conical-to-flat seat adapters, longer lug bolts and 10mm spacers
Tires	Nitto Recon Grappler A/T 285/50R22 E-rated (~33″)
Spare	Full-size matching spare (in place of the third row)
Suspension	+28mm air suspension lift via GAP IID Gen 4 tool
Armor	Sarek Autowerke aluminum rock sliders (gloss black powdercoat)
Front bumper	Sarek Autowerke custom steel winch bumper, radiator relocated to center
Winch	Red Winches King Cobra (air-braked, free-spool)

The Build in the Owner’s Words

Wheels & Tires for Off-roading

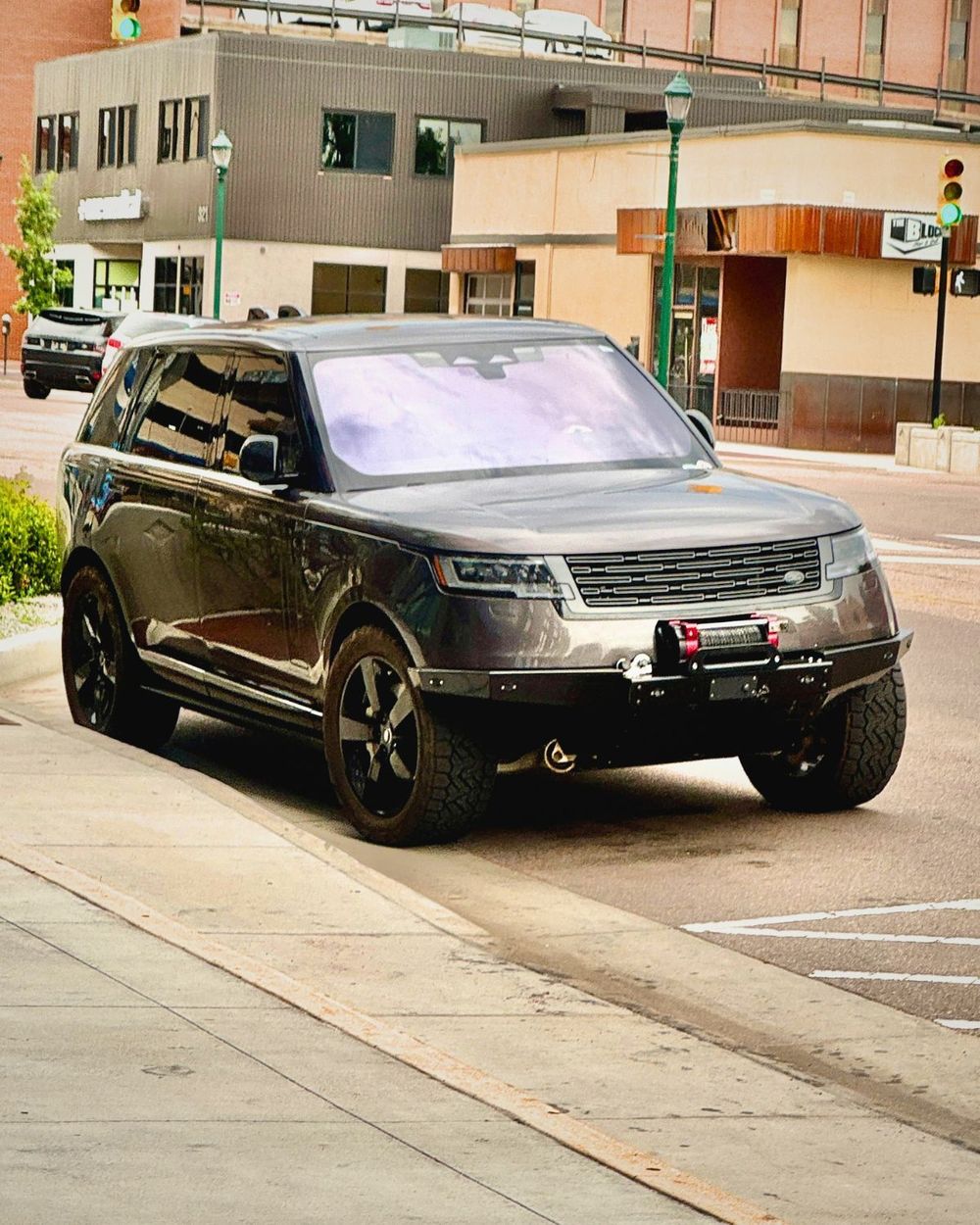

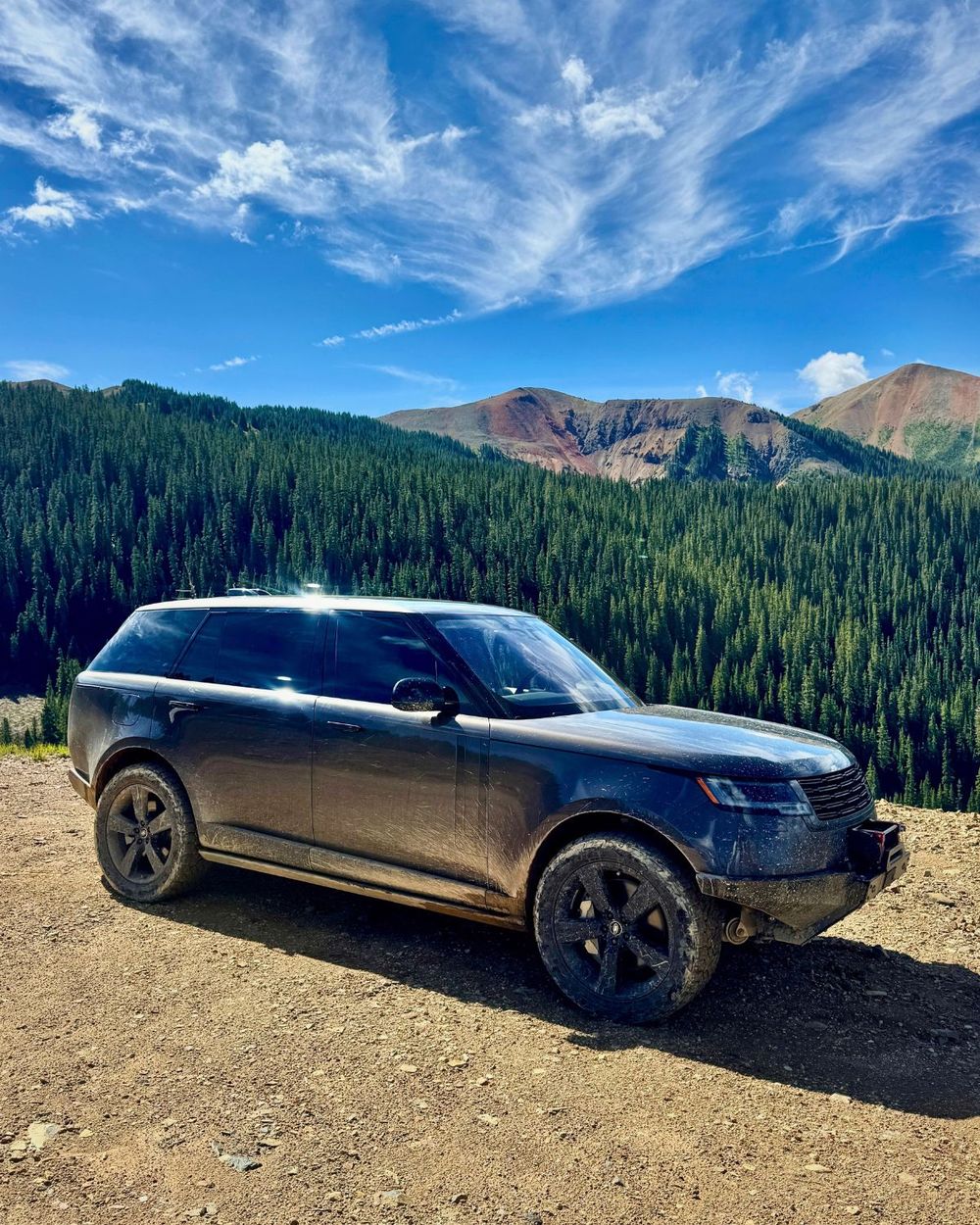

– So, the first challenge was fitting the wheels. I originally bought some Sawtooth style 20″ that did not look right, and traded for this set of 22″ factory Defender wheels. The L460 uses lug bolts now instead of nuts, and the bolts are for conical seat wheels, where the Defender wheels are made for flat seat lug nuts.

It took many months of trial and error with different (and likely not safe) adapters and lug bolt lengths, but my shop foreman at the local LR dealership finally found the correct adapter and I was able to fit them properly. These also have a 10mm spacer to clear the blocky sidewall of the Nitto Recon Grappler 285/50R22 from a bolt protruding from the upper control arm.

It was a long and frustrating learning curve because each try would require me to take the factory wheel off, give it a go, then find out it wasnt right. Luckily, it’s set now with the proper amount of turns of lug bolt into the hub. I can bore you forever about that.

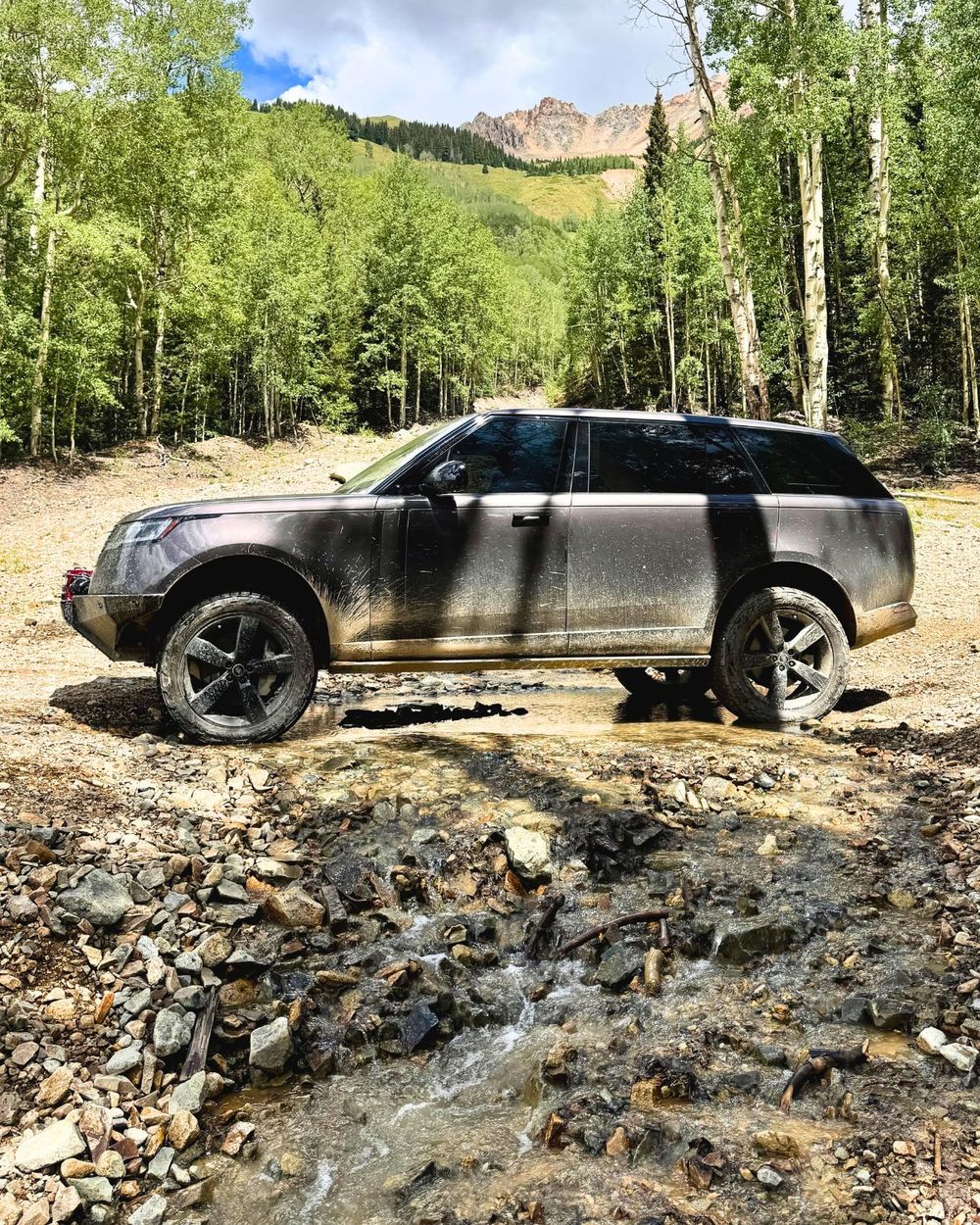

I used E rated 22″ tires with an OD around 33″ because of prior experience wheeling L405’s on 22’s. They can do it, but the E rating gives peace of mind. I also removed the third row seat to store a full size matching spare, and keep an ARB hydraulic jack, torque wrench, and bottle jack for any emergency.

Suspension Lift

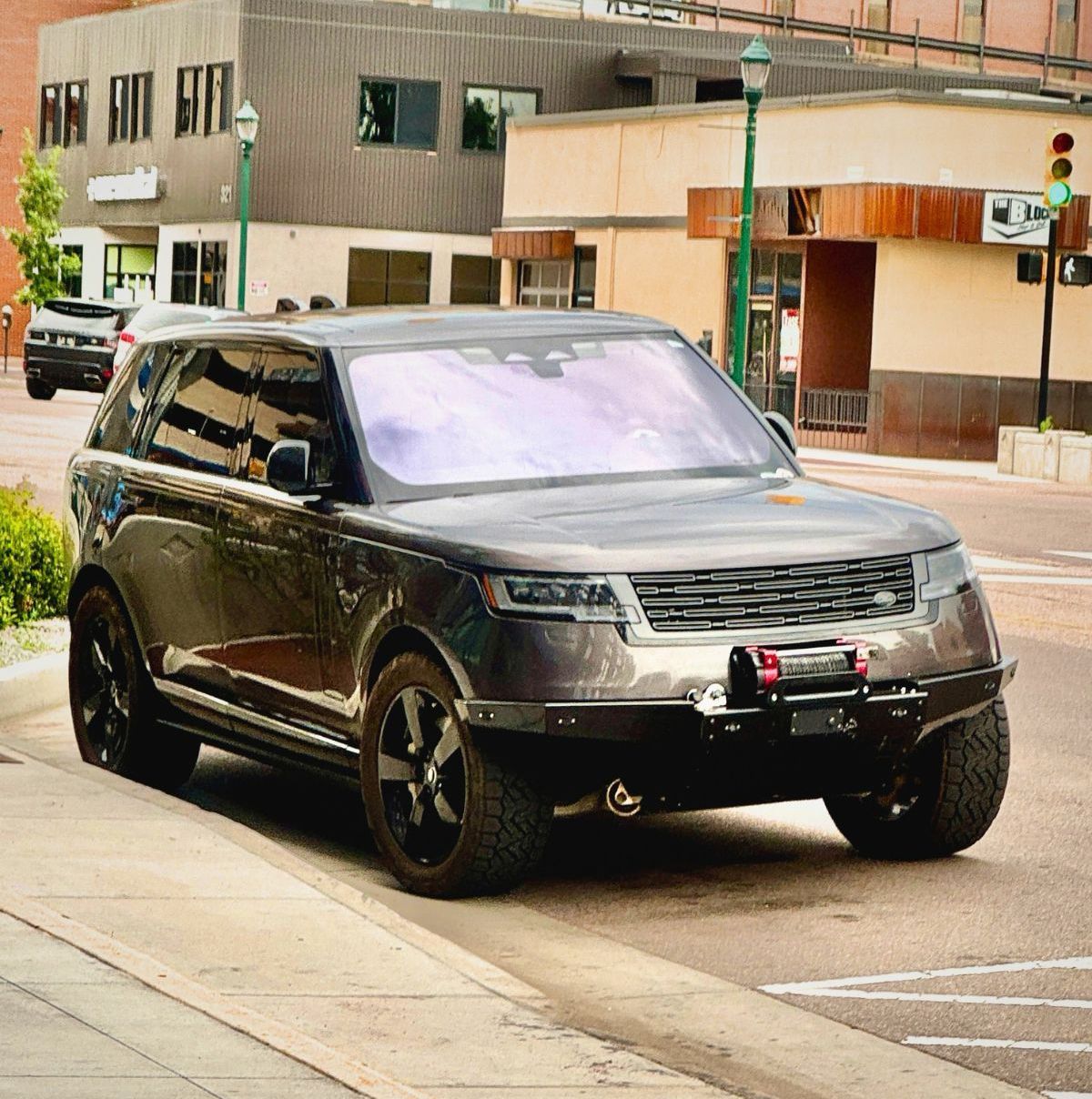

– The lift is programmed via GAP IID gen 4 tool at 28mm. I originally did 40 but found 28 to be a good mix of highway height and air spring comfort. I usually wheel it in standard height mode because anything higher seems to stress the struts.

Rock Sliders, Bumpers & Winch

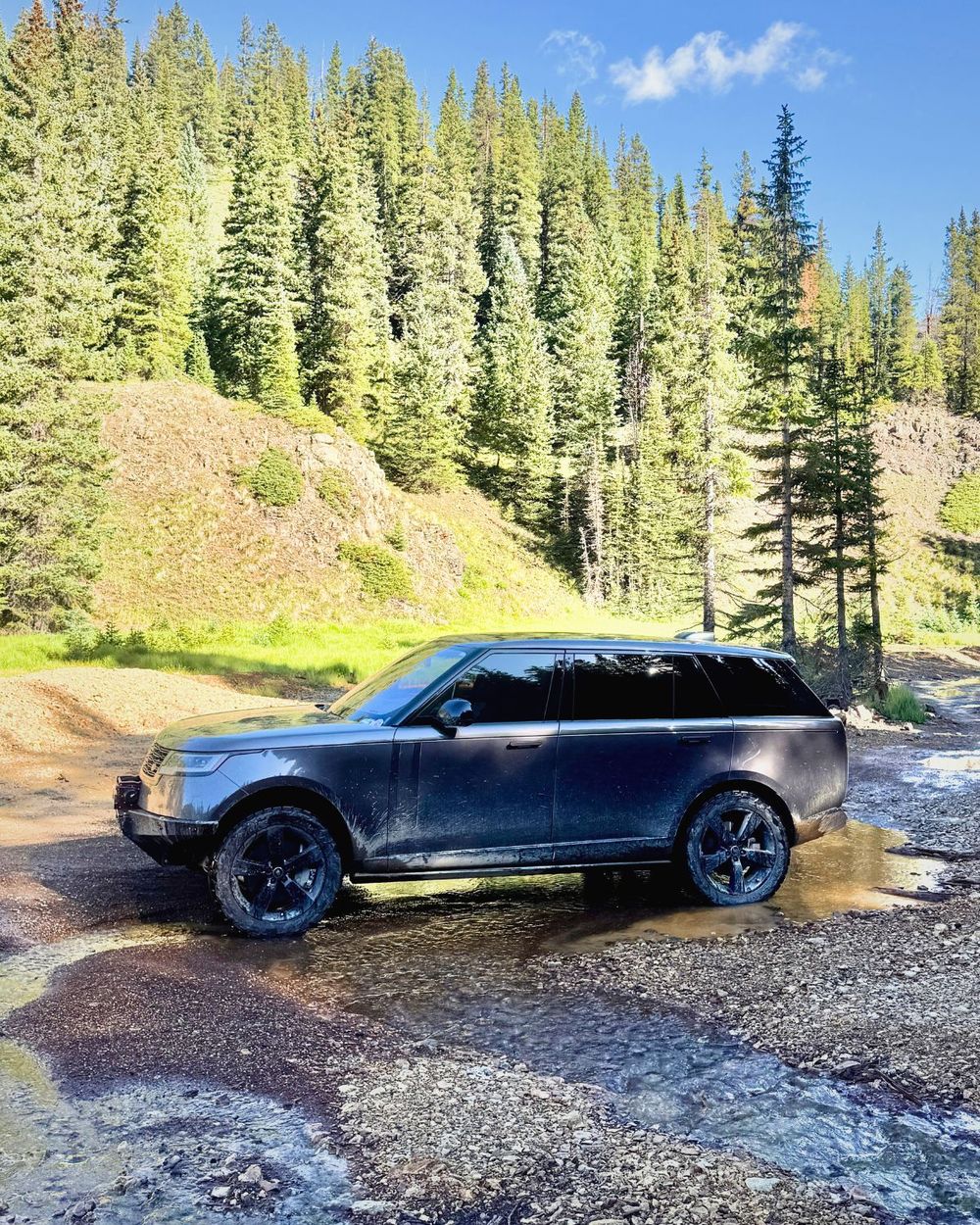

– The next project was having Sarek Autowerke build my rock sliders. This is a LWB and previous L405 LWB wheeling told me that’s the most important modification. Sarek has made their own aluminum extrusions for use on the new Defenders.

I sent the car to him to have 3D scanned and the models made. The sliders were gloss black powdercoated, and positioned in a way that also makes a decent fixed side step and protect the lower doors. They are a real masterpiece.

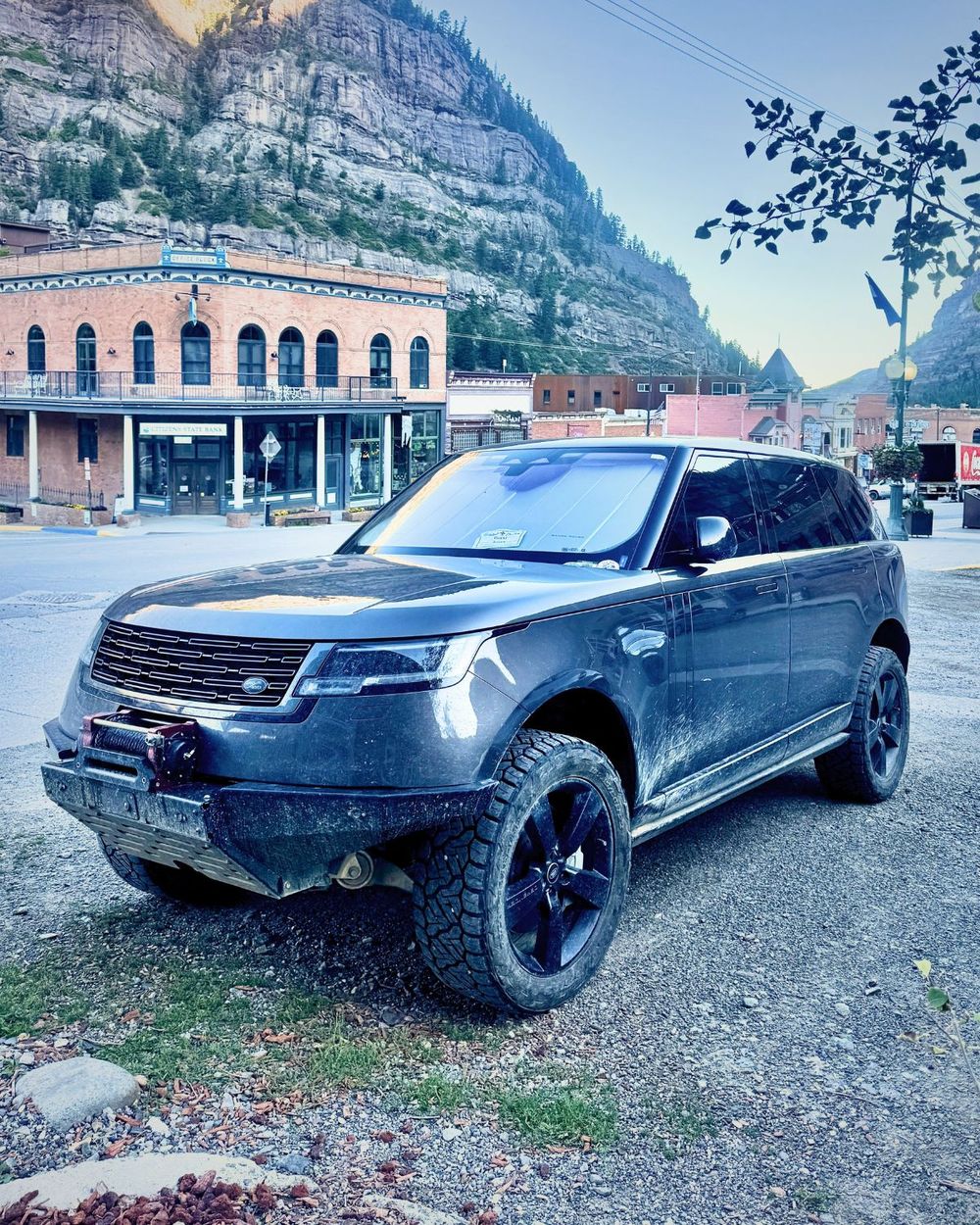

Finally, after a few months, I sent the car back to Sarek to scan and 3d model the front winch bumper. A few close calls had me worried about the factory radiator positioned in front of the LHD wheel, and he had a Defender solution already for that.

He moves that radiator to center, but custom designed a new and more aesthetic steel bumper for the L460 that follows the bulbous curves of the front end. He is passionate now about the air-braked and free-spooled Red Winches, so I said let’s do it.

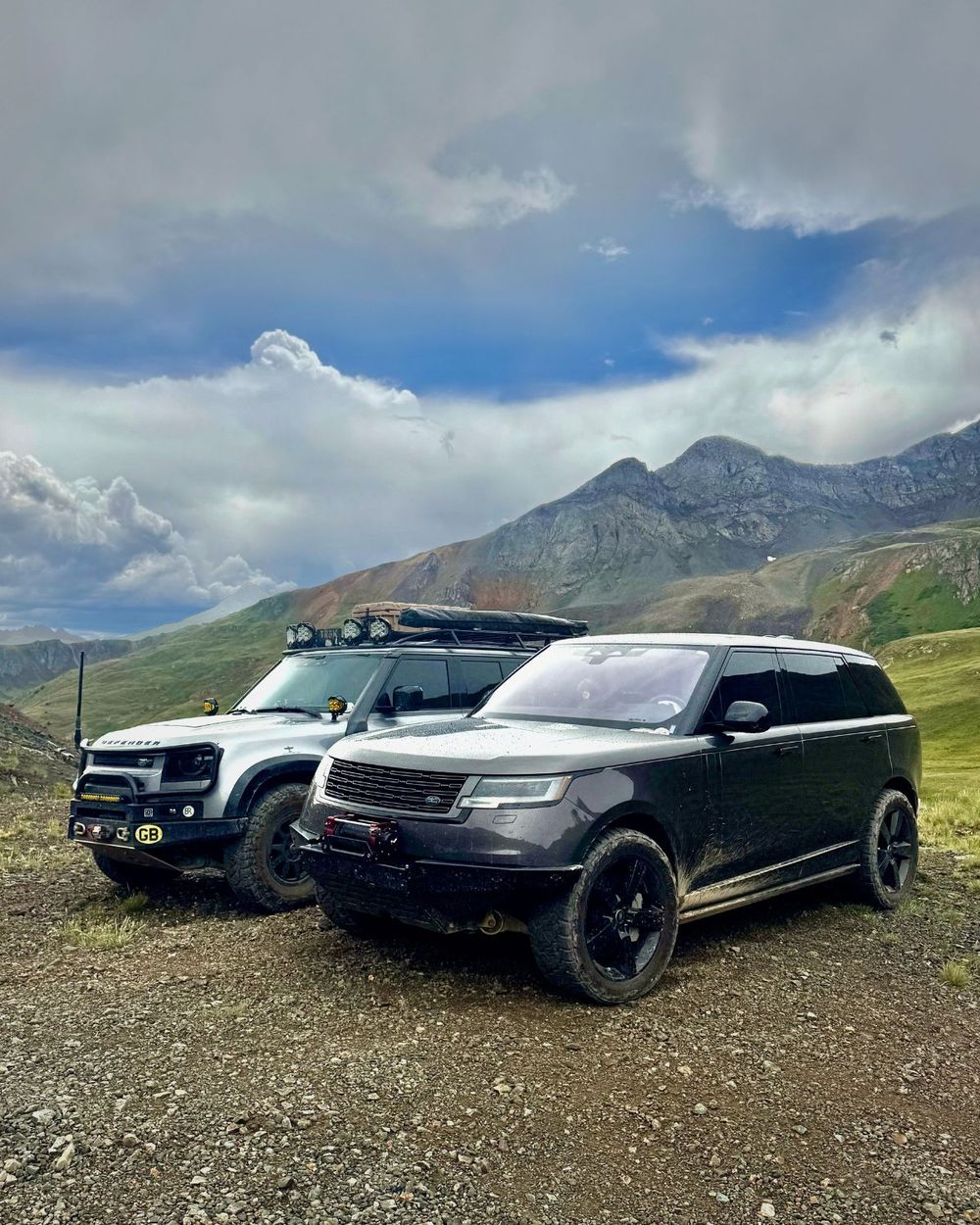

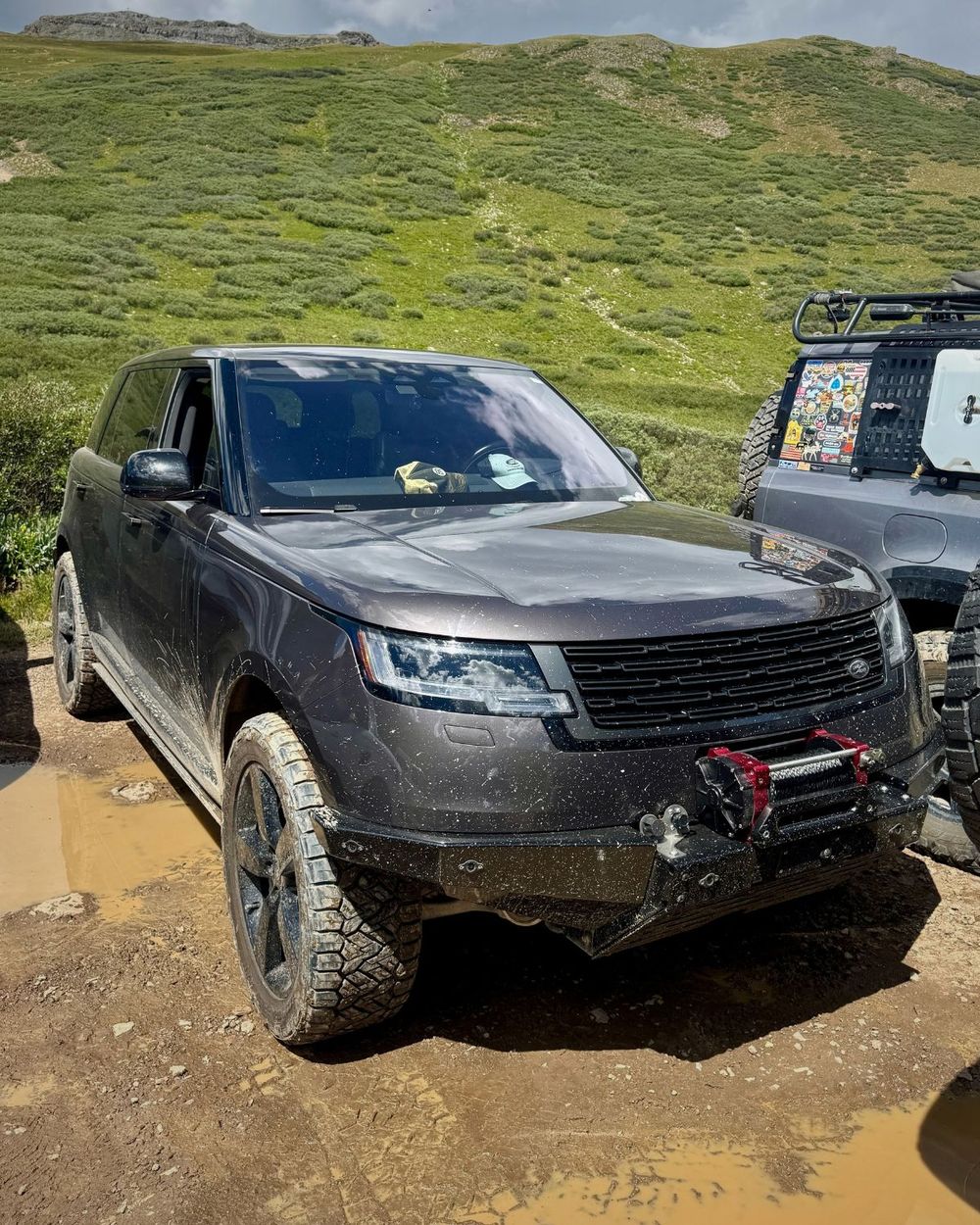

This is a King Cobra laid down rearward so you don’t see all the mass of it. To do so, we removed the flappy panels behind the grille and under the bumper, which causes no alarm to the car. The bumper cover was cut to fit the new steel lower, and an ARB twin compressor is mounted behind the cover to service the winch and any other air needs such as tire filling.

Q&A

Have you noticed the suspension sag / nose dive because of all the added weight of the body armor and gear?

– I haven’t noticed any real effect on the vehicle dynamics. The sliders being aluminum arent too heavy, but of course the winch and steel bumper are. The air suspension compensates for any front end sag.

I think the spare equals out with the third row being removed for weight, and I hardly drive it with anyone else in the car. The only noticable difference is MPG but that was mainly by putting the bigger tires on. I’m still getting around 400 miles to tank of fuel. Payload is around 1700 lbs so there is still plenty left.

Where do you actually wheel it? Favorite spots, specific trails

– I have wheeled it from Virginia to Colorado, with Florida and Alabama being in between and close to home. I plan to go to Texas with it but that’s all on the horizon in the near future. Its seen sandy beaches, mud, clay, and rocky terrain in all those spots. Colorado was the favorite for vast scenery thus far, but I really enjoy driving on the beach the best. I may sell it and build another one down the line while its still under warranty so I’m debating future trips.

What do you like the most about your L460 Range Rover build?

– The fact that you can only tell its modified while driving due to the hum of the tires, and that’s usually only on the highway. It still retains all of the factory creature comforts and luxuries.

I’ve never enjoyed driving a car for 12 hours on the interstate that’s as capable off road before. Its by far not my first range rover, but this is the first L460 ive owned and it has exceeded my expectations. Most tend to say the L322 was the best (I’ve owned. And I’ve owned 3 l405’s, 2 of which I wheeled in mud and Moab on 22’s, and I find the 460 to be the correct successor to the 322 in design and spirit.

I built this to only make me happy and confident with the wheeling I like and want to do. Obviously it’s not everyone’s cup of tea, but it does exactly what I want to do, and well. I didn’t expect it to get this attention.

List of modifications & Upgrades

Wheels & Tires

• 22″ factory Land Rover Defender wheels
• Conical-to-flat seat wheel adapters
• Longer lug bolts
• 10mm wheel spacers
• Nitto Recon Grappler 285/50R22 E-rated tires (~33″)
• Full-size matching spare

---

Suspension / Steering / Drivetrain

• +28mm air suspension lift via GAP IID Gen 4 tool

---

Exterior Modifications

• Sarek Autowerke aluminum rock sliders (gloss black powdercoat)
• Sarek Autowerke custom steel front winch bumper
• Radiator relocated to center
• Trimmed factory bumper cover
• Removed under-grille and under-bumper panels

---

Overland Upgrades

• Red Winches King Cobra winch (air-braked, free-spool)
• ARB twin air compressor
• ARB hydraulic jack
• Bottle jack
• Torque wrench

---

Interior Modifications

• Third-row seat removed

Why the big Range Rover is a legit 4×4

V8 and Low Range

Even though the late-model Range Rover doesn’t look like a truly off-road capable vehicle, it does have everything to be one. Everything starts with the 4.4L twin-turbo V8 engine delivering 530 HP and a true dual-range transfer case that sends massive amounts of torque to both axles in order to paddle out of a dirt section or climb an obstacle.

Another notable feature is that drivers can switch between ranges electronically on the move at speeds up to approximately 60 km/h (37 mph) – a pretty high speed one could utilize for, let’s say, dune bashing (think Nissan Patrol – kind of fun in the UAE desert).

No need to buy a conventional lift kit

Even though not as bulletproof as the static mechanical unit, the air suspension gives the unique benefit of changing the ground clearance from 8.6″ to an impressive 11.6″ with a touch of a button.

Ever since this technology was utilized in the LR3, off-road enthusiasts figured out that some reprogramming of the control module responsible for the ride height unlocks the ability to lock it in the maximum setting, eliminating the need for an aftermarket lift kit with extended suspension components that you would need on an analog 4×4. The same approach works on the L460 as well.

Sway-bar disconnect

Instead of a traditional manual or mechanical sway-bar disconnect (like the ones on the Jeep Wrangler), the vehicle uses a more advanced electronically controlled Dynamic Response Pro system.

When an off-road terrain mode or low-range setting is engaged, the 48-volt actuators actively decouple the split anti-roll bars, removing torsional resistance across each axle, maximizing the suspension travel. The actuators can even apply counter-torque to actively push a wheel down toward an uneven surface to maintain contact and regain grip.

Off-road crawling control

In addition to this, the 5th Gen Range Rover 2022&UP comes with the Terrain Response system and All-Terrain Progress Control (ATPC) (operable between 1.1 mph and 18 mph), similar to Toyota’s Crawl Control found on specialized TRD Pro and TRD Off-Road versions of their body-on-frame SUVs and trucks (like the 4Runner, Tacoma, Land Cruiser, etc.), which electronically adjusts the throttle and braking for the ideal ratio to maintain forward momentum (something that old-school off-roaders had to learn in trail conditions).

Locking Differentials

What about the lockers? The L460 Range Rover does have two – the center multi-plate clutch differential lock and the rear active diff lock – both electronically controlled, of course.

Spotting cameras

In addition to these key features standard on dedicated off-road SUVs, it also has some other sophisticated tricks like the ClearSight Ground View & 3D Off-Road Cameras, which display real-time tire placement over obstacles and sharp drop-offs (eliminating the need for a spotter).

Wading depth of 35″

The engineers at Land Rover didn’t deny a future owner’s need to wade a creek at some point in the vehicle’s life and outfitted their flagship model with Active Wade Sensing, which tracks the water level using the sensors in the side mirrors to warn the driver before reaching the fording limit of 900 mm / 35.4 inches (!) – what a cool feature to have in every 4×4!

To top off the tech arsenal, this vehicle is equipped with all-wheel steering, which counter-steers the rear wheels up to 7.3°, dramatically reducing the turning radius when negotiating tight switchbacks despite the long 3,197 mm wheelbase (a feature I remember seeing in the Japanese sports cars of the late 90s to early 2000s, like the legendary Nissan Skyline GT-R R34).

Geometric Parameter	Off-Road Specs
Ground Clearance	294 mm (11.6 in)
Approach Angle	34.7°
Ramp Breakover Angle	25.2° – 25.9°
Departure Angle	29.0°
Maximum Wading Depth	900 mm (35.4 in)
Maximum Incline / Gradient	45° (100% gradient)

With all the above mentioned tech, it’s no wonder that late model Range Rover sits a above the most legit analog 4x4s like the Frontier Pro4X D41 (2022+) and Tahoe Z71 GMT800 in our stock vehicle off-road capability rating.

The difference is how they get there. The Frontier and Tahoe earn their points with body-on-frame chassis and traditional 4WD, while the Range Rover loses points for its unibody AWD layout and wins them back with height adjustable air suspension, advanced traction tech with sway bar disconnect and 32-inch factory tires.

Its 11.6 inches of max ground clearance (air suspension locked in the top position) ranks 16th of the 190 vehicles we’ve rated, apart from the Hummer H1, Ram Power Wagon and G-Class 4×4 squared.
