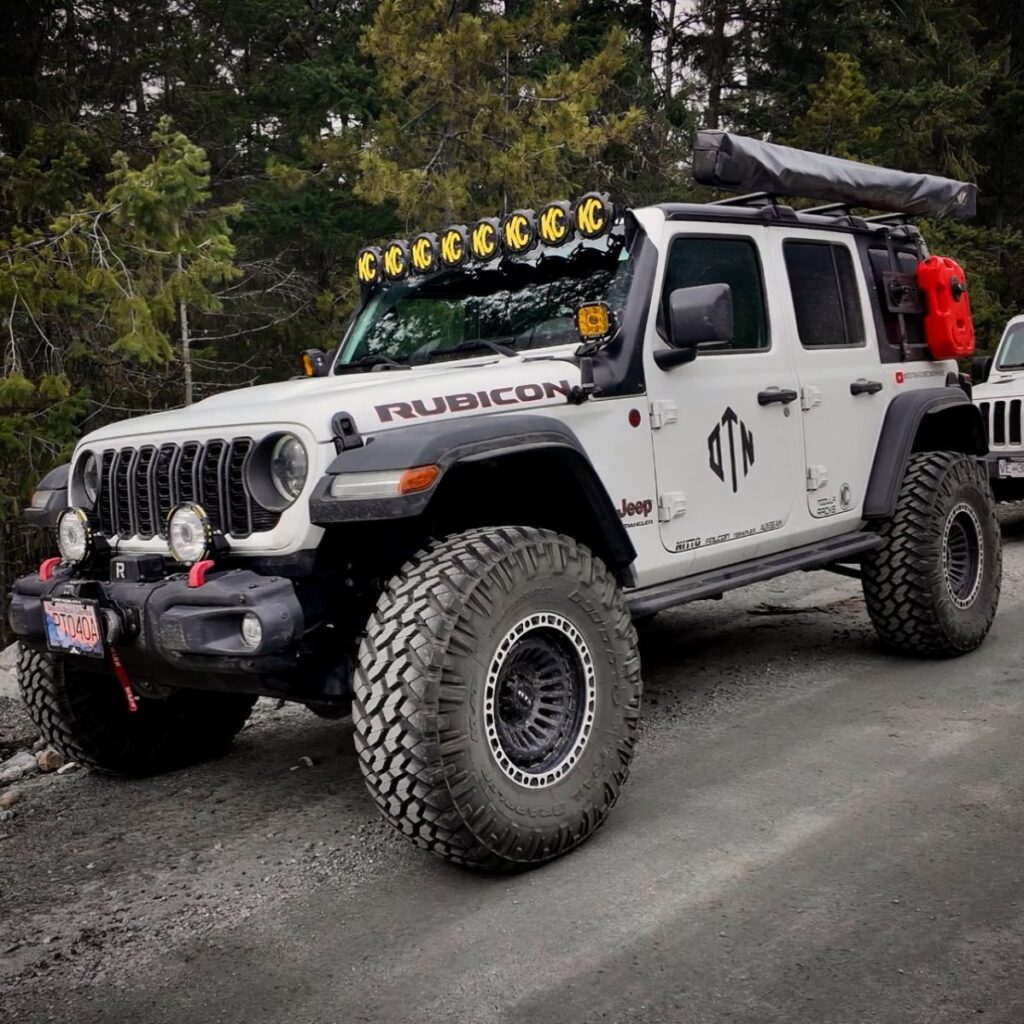

Jeep Wrangler JL Overlanding Build on 37s with a 3.5″ Teraflex Lift

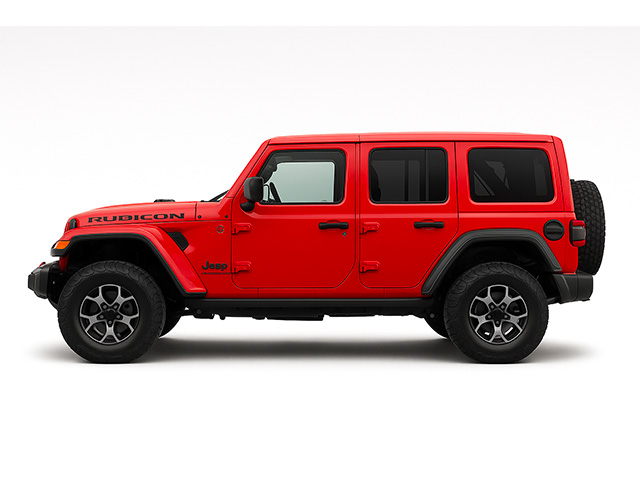

The JL Wrangler definitely sits at the top of the offroad vehicle food chain for good reason. It’s one of the last true body-on-frame 4x4s with solid axles front and rear, that comes with real lockers and is built specifically for trail duty (which is why it gained impressive 87.1 points in our stock vehicle off-road capability evaluation). While everyone and their neighbor seems to own one these days, the JL remains the gold standard for serious wheeling, especially when modified accordingly.

This particular JL caught my attention because of the 3.5″ lift and 37″ tire combo which perfectly balances simplicity with serious 4×4 capability. Dorian, the owner behind Destination To Nowhere project and YouTube Channel has built this rig to handle truly demanding trails while still being practical enough to park in the city (something that he learned the hard way after downsizing from a Gladiator).

Key Mods:

• Teraflex 3.5″ ST3 + Falcon Shocks
• 37×12.50R17 Nitto Trail Grappler
• 4.88 Ratio DANA 44 Axles
• Full overlanding setup with auxiliary fuel and power systems

Affiliate disclosure: we may earn a small commission at no additional cost to you if you buy through some of the product links in this post.

The Build

Making the jump from a Gladiator to the shorter JL platform was all about maximizing capability and maneuverability. Every mod serves a purpose, from the carefully tuned suspension to the essential overlanding setup.

Suspension

Upgrading to a 3.5″ lift is the “gold standard” transition for someone moving from a stock Wrangler to a serious off-road build on 37″s. At the 3.5-inches of added height, you are fundamentally changing the suspension geometry so a simple spacer lift will not allow you to do it right, as the angle of your control arms and track bars becomes steep enough to cause “flighty” steering and a harsh ride.

To hit the right spot between ground clearance and geometry, Dorian decided to stick with Teraflex 3.5″ lift kit which includes brackets to keep your track bars horizontal and avoid an excessive “lean” or sway in corners. Plus, its adjustable control arms allowed resetting the caster angle.

The kit comes with reinforced Falcon shocks all around with Increased Oil Capacity. The “reinforced” nature refers to the thick shock shafts and high-strength bodies that won’t bend or snap under the extreme leverage created by heavy tires and deep suspension flex.

To balance out the rear sag from the added weight of the overland gear he also added Teraflex HD rear coils with higher stiffness, which resulted in a perfect setup for an advanced overland rig. Seriously, this exact setup is worth replicating!

If you’ve ever driven a Jeep with oversized wheels than you definitely know that it’s pretty difficult for the factory steering stabilizer to handle anything bigger than stock 33″s with equal confidence. Every time you hit a pothole or a rock, that 100-lb tire wants to pivot. The factory stabilizer often lacks the “valving” (internal resistance) to stop that heavy tire from oscillating. That’s why Dorian has opted with an aftermarket Falcon steering stabilizer which handles 37s significantly better.

A steering stabilizer is a dampener, not a fix. If your Jeep has Death Wobble or loose steering after installing 37s, a new TeraFlex stabilizer will only mask the problem. Before installing it, ensure your track bar is torqued to spec and your ball joints aren’t shot. – ExtremeTerrain

Budget Estimate

If you’re thinking about replicating this exact suspension setup, the Teraflex 3.5″ lift kit with Falcon shocks and the supporting hardware is one of the pricier but more rewarding investments in this build. Based on current pricing, expect to spend somewhere between $1,980 and $2,750 depending on which shock variant you go with and whether you tackle the install yourself.

Wheels & Tires

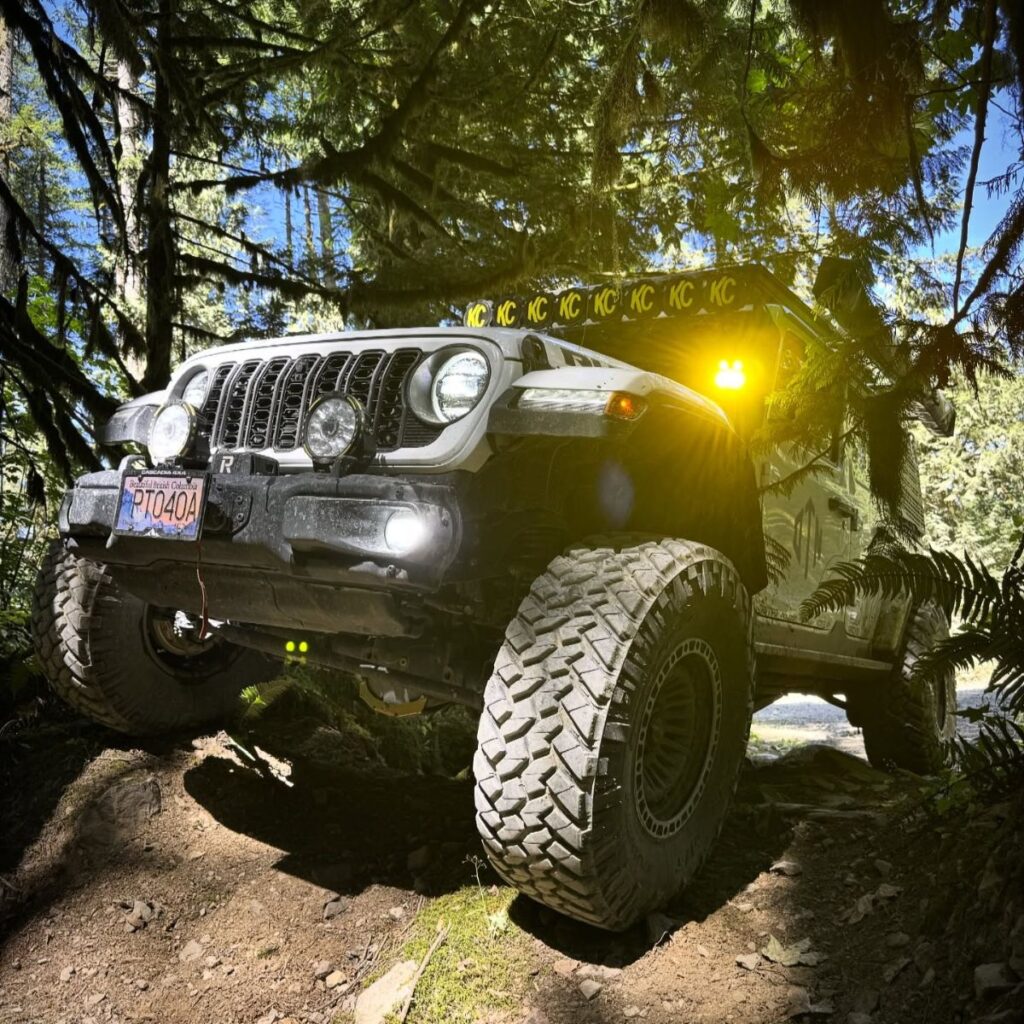

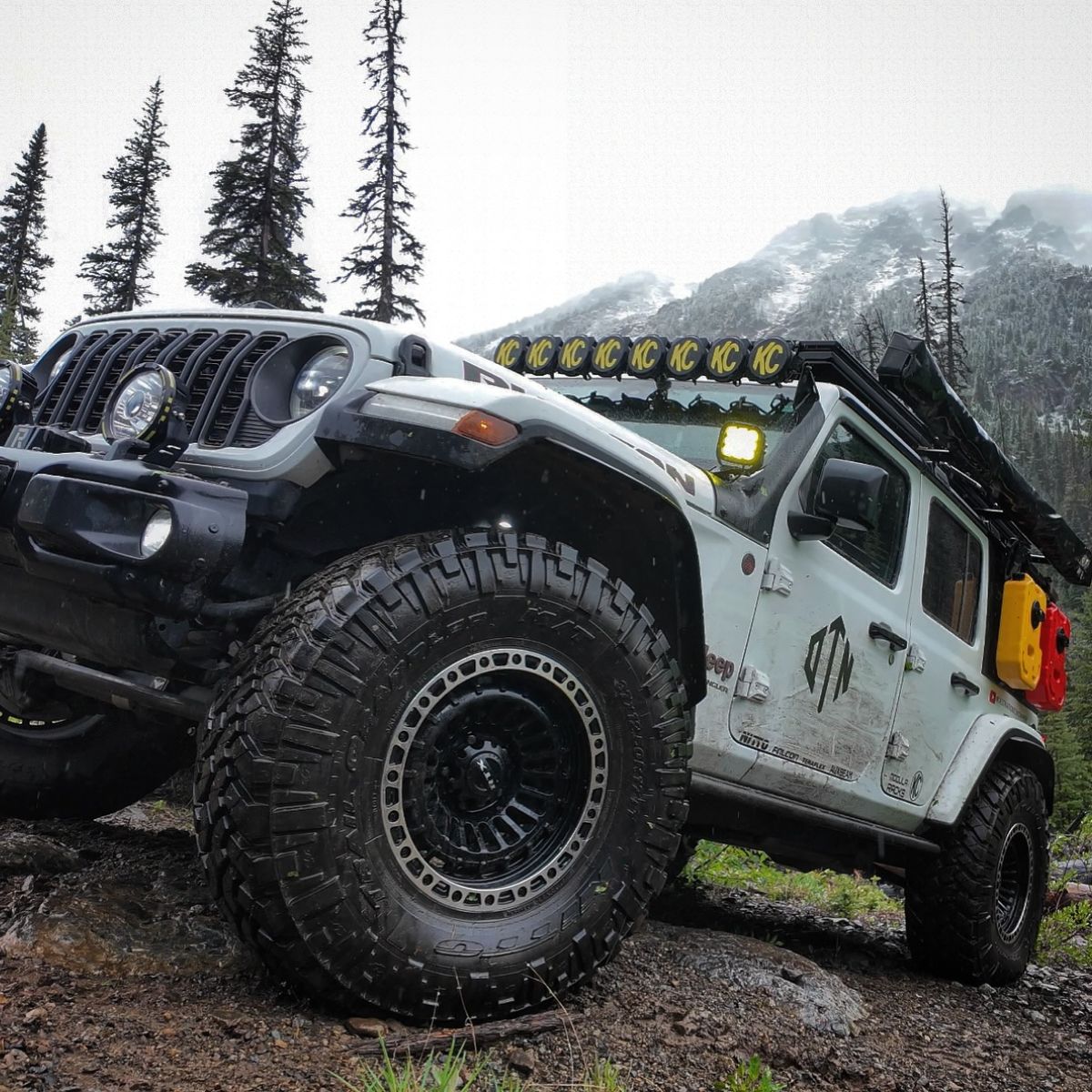

The wheel setup is represented by 37×12.50R17 Nitto Trail Grapplers wrapped around RTX Moab wheels (17×9 with -15 offset) that completely transformed the way this JL Wrangler looks and drives. According to the owner, these M/Ts are his favorite upgrade. They’re smooth enough that you can actually have a conversation at highway speeds, but with traction that’s been “mind boggling” on all kinds of terrain. That’s the sweet spot for a dual-purpose build like this.

Budget Estimate

As usual, the wheels-and-tires package takes up a significant chunk of the budget. This particular combo of 37×12.50R17 Nitto Trail Grapplers on RTX Moab wheels is actually a smart value play (premium rubber paired with an affordable rim). Source them online and you’re looking at $3,450 to $3,875 for a full set of five including the spare.

4.88 Regear

As you understand,running 37s without a re-gear is a recipe for a sluggish, frustrating drive. Those tires are massively heavier than stock (we’re talking 100-120 lbs per corner) and that extra unsprung mass simply kills acceleration, stretches braking distances, and puts serious stress on the ball joints, wheel bearings and steering components.

To address that, Dorian has switched to 4.88 gears, which helped him to balance out the engine output with the tire size. It helped him to regain the mechanical advantage he needs to actually make those 37s work for him instead of against him.

Budget Estimate

The 4.88 regear like this for example, is one of those mods you don’t see but absolutely feel. Parts and labor together will run you roughly $1,600 to $2,400 depending on your shop’s hourly rate and your region (less if you’re mechanically confident enough to tackle it yourself).

Body Armor

Protection is minimal but strategic. Metalcloak diff skid plates protect the vital bits on the front and rear axles, with matching rear lower shock skids. Rockhard tube sliders mounted on both sides protect the rockers without adding too much weight.

Overland Gear

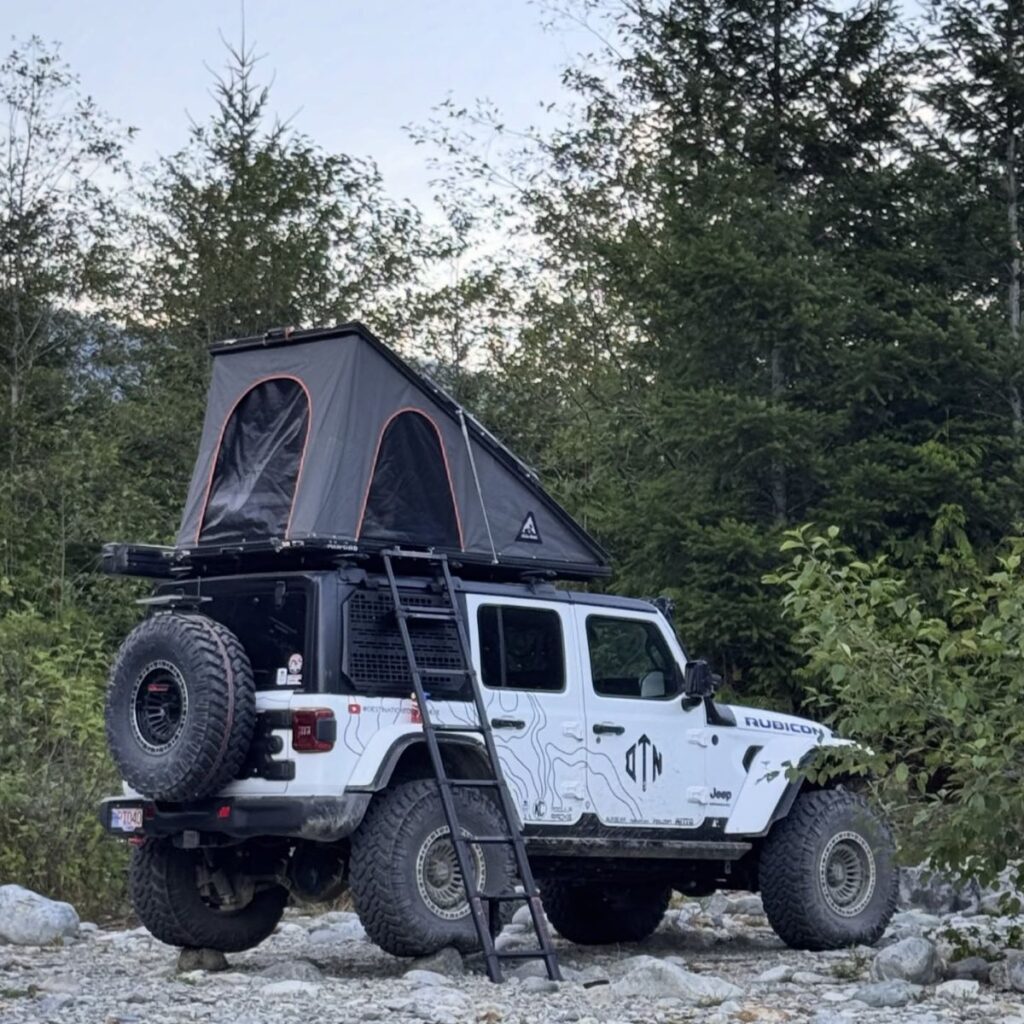

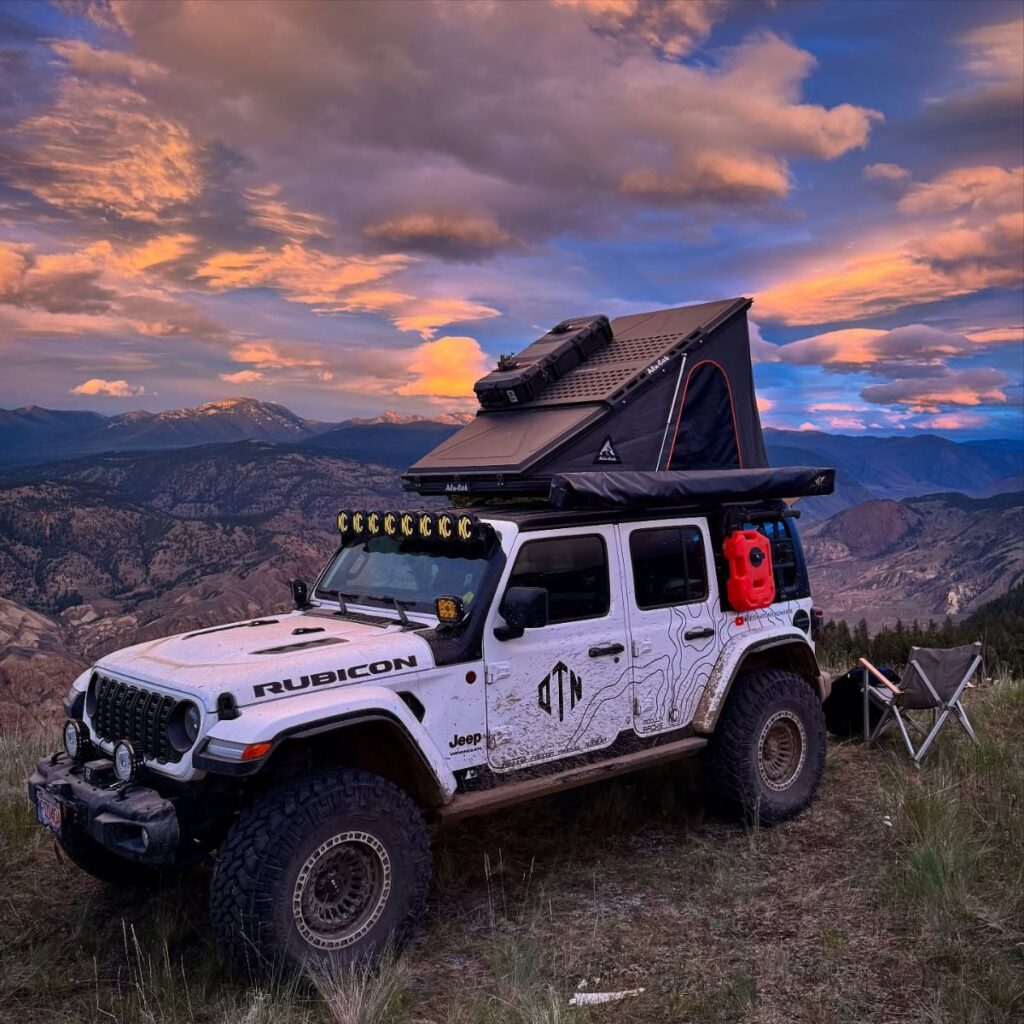

Up on top is the Rhino Rack backbone system which supports a 270-degree awning and houses the compact Alucab hardshell roof top tent which doesn’t eat up too much real estate.

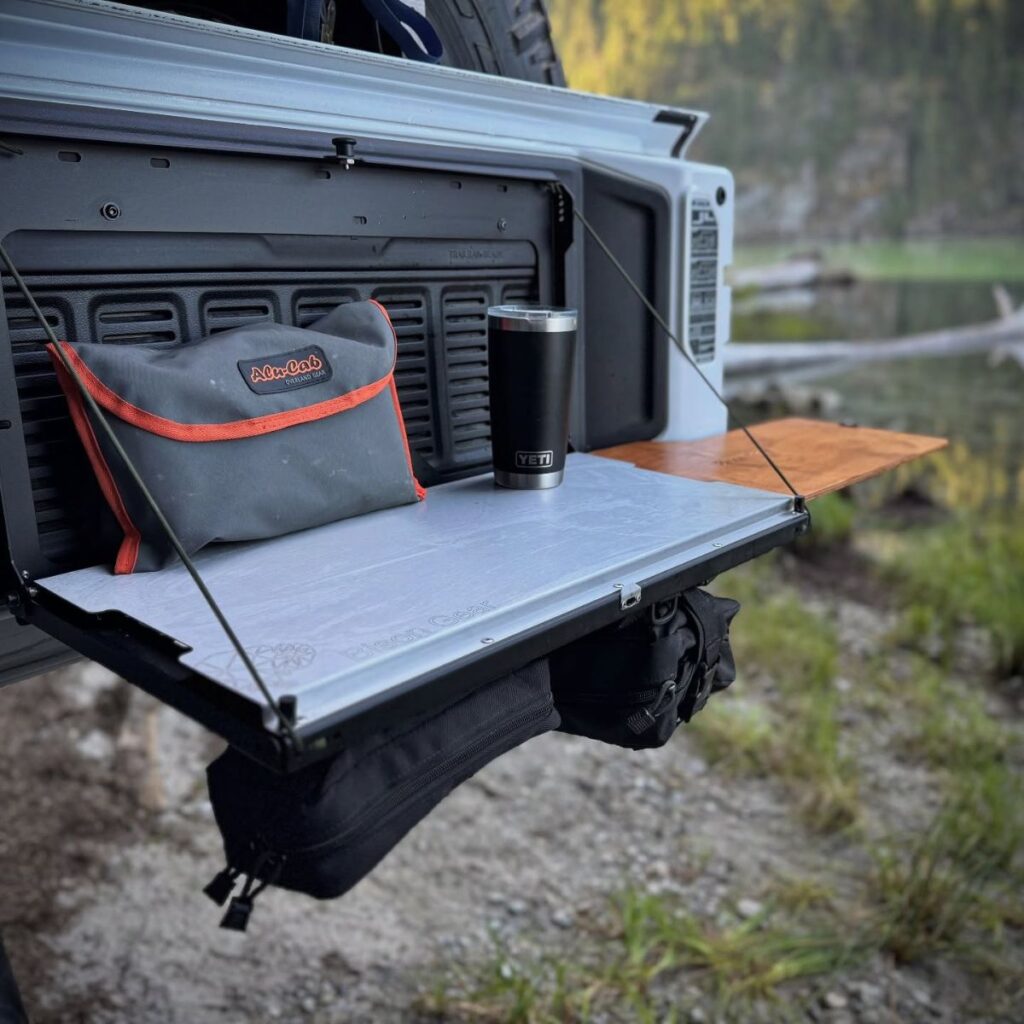

The 70L Long Ranger auxiliary fuel tank was added to extend the range of the off-road outings and give the peace of mind for the owner. Bodega drawer fridge and Front Runner rear table with slide make camp life more comfortable. A couple of other cool upgrades are the Bluetti 2000wh system and the semi-permanently mounted Starlink Mini.

This is where the budget climbs fast. Between the rtt, the 270° awning, rock sliders, skid plates, the Long Ranger fuel tank, and the winch, you’re looking at a wide range of $5,950 to $8,164. The quality Roof top tent alone accounts for nearly half of that figure, but it will pay off the first trip you embark on. If you’re looking for an easy to set quality hardshell RTT, check out the Falcon EVO3 Air from Roofnest – a tried and tested solution for the JL.

Interior Organization

On the inside, it’s all about maxxing up the limited space. A Crow Molle system and rear Molle shelving keep the gear organized and within reach. The drawer system for the fridge makes access easy without having to unload half the Jeep at the campsite.

The interior mods are relatively modest in cost but make a big difference in day-to-day usability on the trail. The Molle system, drawer fridge, and camp table together should run you somewhere in the $1,150 to $1,950 range depending on the fridge brand you go with.

Lighting

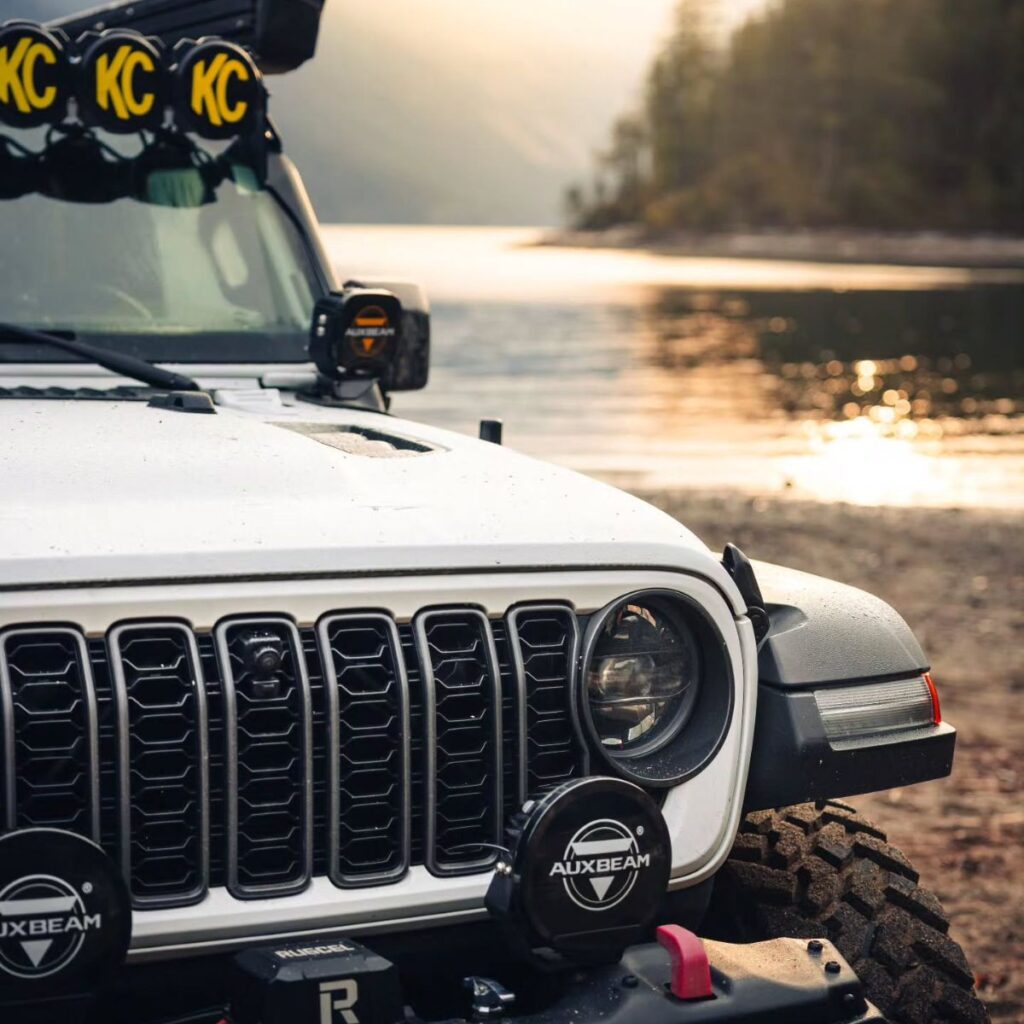

The lighting setup is represented by a mix of KC Hilights spots and AUXBEAM 5″ and 7″ spot lights, + ditch lights for those tight BC trails.

Lighting is one of the easier categories on the wallet in this build. The mix of KC HiLiTES and AUXBEAM pods is a budget-conscious but effective combination, and you can put together a similar setup for anywhere between $580 and $1,050.

Owner’s Insight

Why did you choose a JL Wrangler for your off-road project?

– I initially had a Gladiator but felt that I was limited on what I could conquer given the long wheelbase and issues parking in the city lol. Ever since I was a kid I’ve had this love for Jeeps, top off cruising in the sun and as I got older I developed this love for off-roading which Jeeps are built for.

Given the tight wheelbase and solid front axle it was a simple choose given the diversity of the trails in British Columbia. Enough strength to get you through over grown washouts to intense rocky terrain.

What was the most difficult part of the build?

– The most challenging part of the build has been the suspension and tent lol dialling in the suspension has been critical given the weight I carry without sacrificing ride quality on the road.

What’s in the Jeep now will most likely be changed to something a little more rigid in the rear like AEV coils with fully adjustable shocks. Tents has been difficult as I like to be rather minimalistic and having big tents up top can be extremely detrimental to real estate with a smaller vehicle. The Thule foothills has been a good addition.

What is your favorite (or most impactful) upgrade?

– The 37” Nitto Trail Grapplers have been my favorite upgrade to date. I’ve never been so thrilled to have such a smooth functional M/T tire where you can hold a conversation in the cab with the person next to you. The traction these have given me this year on multiple terrains has been mind boggling!

What do you like the most about your Jeep?

– Honestly, I’d have to say my favorite thing is how much my son loves it! He’s named it Yeti and he tells everyone about all the cool places we go see and obstacles we conquer. Otherwise it’s a doorway to peace that’s needed from time to time given the current world we live in.

List of Modifications

Suspension

• Teraflex 3.5″ lift with upgraded HD rear coils
• Falcon shocks
• Upgraded Falcon steering stabilizer

---

Wheels & Tires

• 37×12.50r17 Nitto Trail Grapplers
• 17×9 -15 RTX Moab wheels

---

Drivetrain

• Dana 44 axles with full float rear
• 4.88 gears

---

Exterior

• Rhino Rack backbone system
• 270 awning
• Metalcloak differentrial skid plates Front and Rear
• Metalcloak rear lower shock skids
• Rockhard tube sliders
• 70L Long Ranger auxiliary fuel tank
• Rugged Ridge rear tire carrier upgrade
• Trail Racks rear window mounts
• Rockslide rear tire propane holder
• Rugcel 13500lb winch

---

Interior

• Crow Molle system
• Rear Molle shelving
• Bodega Drawer fridge
• Front Runner rear table with slide

---

Lights

• KC Hilights spots
• AUXBEAM 5 inch spots
• AUXBEAM 7 inch spots
• Ditch lights

---

Power & Connectivity

• Bluetti charger 1 paired to 2000wh Bluetti
• Starlink Mini (semi-permanently mounted)

Conclusion

This JL Wrangler is well-thought-out adventure rig running the perfect suspension-wheel-drivetrain setup. Jumping from 33s or 35s to 37s is a massive commitment that affects every mechanical system in the vehicle, if you fail with one component, the whole thing will start doing more harm than good. Luckily Dorian has managed to pick the right parts and make them all work in the best way possible.

With one of the highest platform off-road capability scores of 87.1 out of 100 and build rating of 70 out of 70 points, this Jeep has everything an experienced off-roader needs: 4WD with lift and oversized tires (30) + lockers front & rear (20) + low range (10) + body-on-frame (5) + armor (5) = 70.

Watch the progress and find out more about this Jeep Wrangler JL overland build by visiting the Instagram profile of the owner: @destination_to_nowhere
