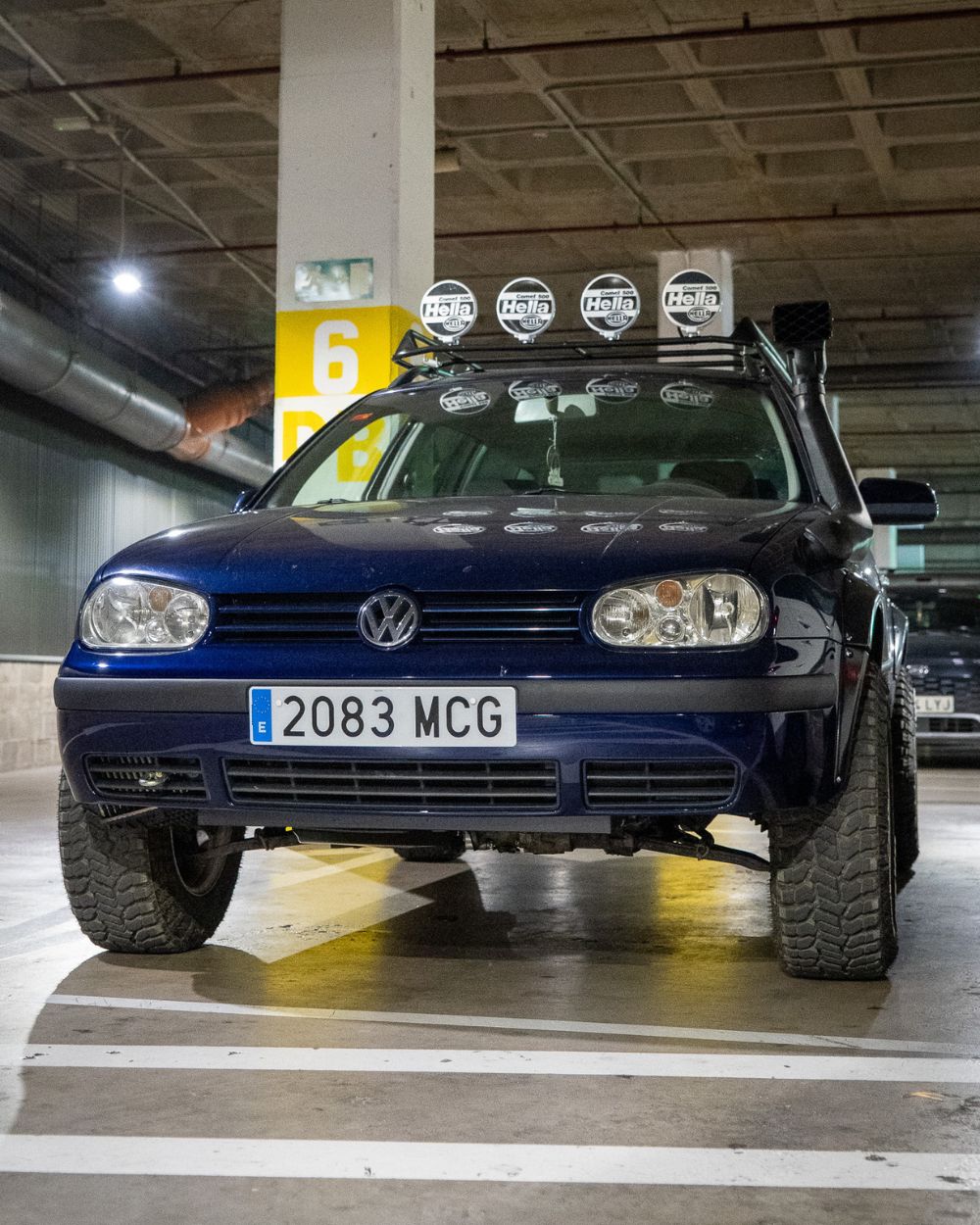

Lifted VW Golf MK4 4motion Off-Road Build on A/T Tires

As a writer and contributor at Offroadium.com I’m always on the lookout for cool off-road projects, so my eye is constantly scanning city traffic, mall parking lots, and all sorts of random locations for something lifted and fitted with oversized off-road tires.

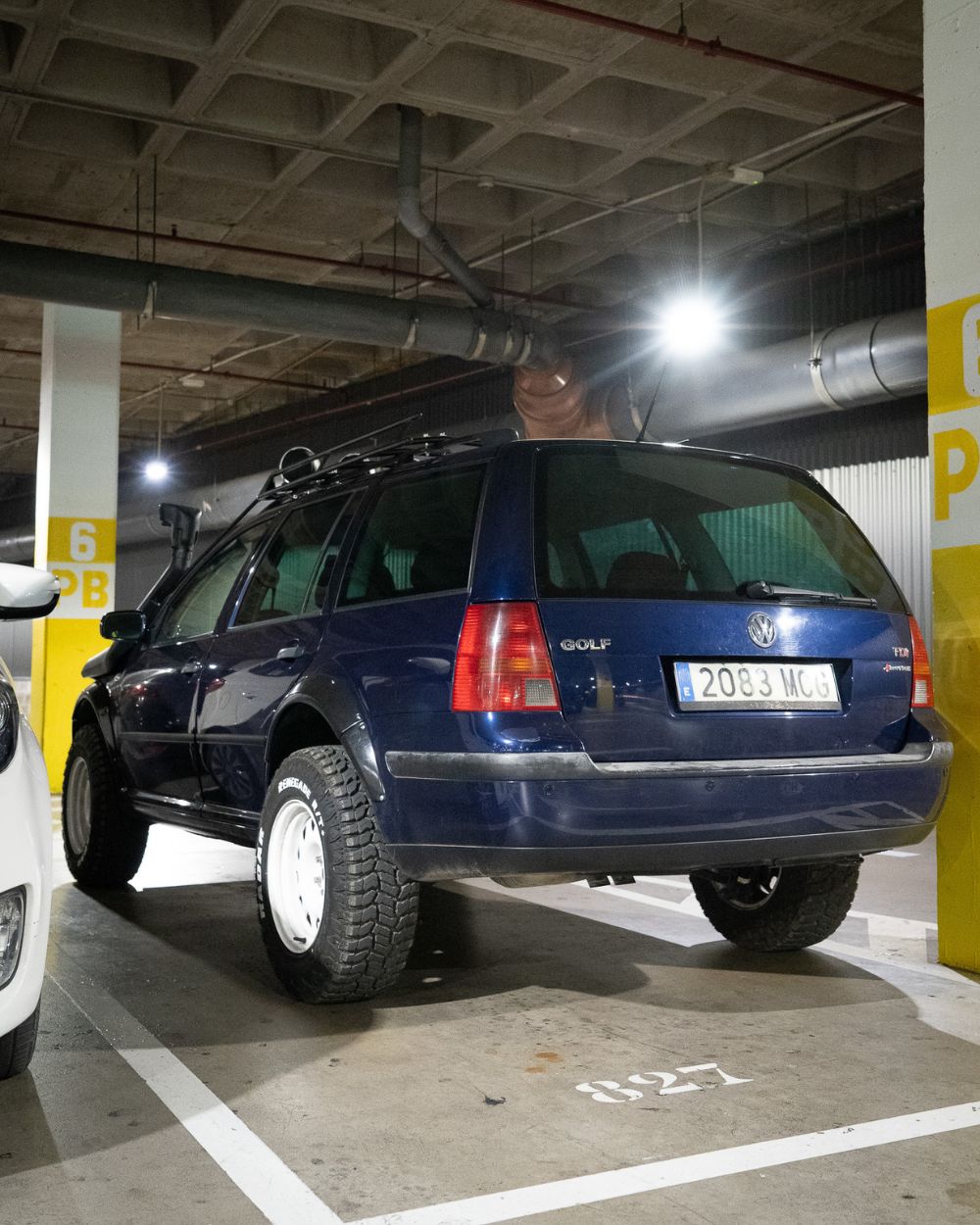

During my time in Spain, my radar was trained to catch the silhouettes of Pajeros, Nissan Patrols, Land Cruisers and Sprinter vans — these just happen to be the most popular 4×4 platforms fans of off-roading choose in this part of the world. But as it comes to any rule, there are exceptions, and this exception is called a 2002 Volkswagen Golf MK4 Variant that I spotted at one of the underground parking lots in Castellón, Spain.

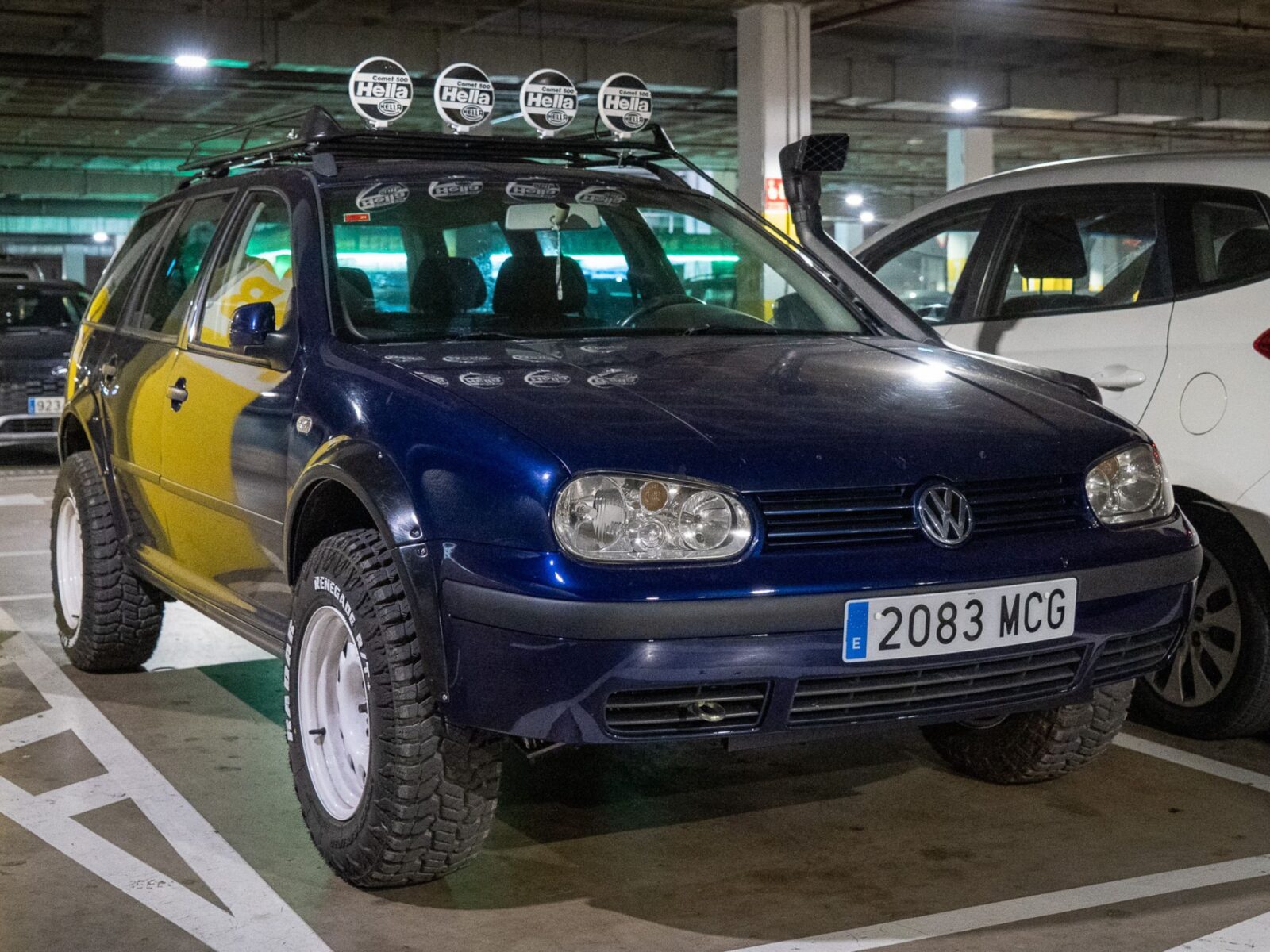

The moment I approached it, I realized that in front of me is nothing other than an MK4 Golf station wagon with a massive lift and heavily oversized off-road tires. After publishing a recent feature about an MK7 Golf off-road build, it didn’t surprise me that much, but it was the first time I’ve seen an MK4 prepped for off-roading with such a great attention to detail.

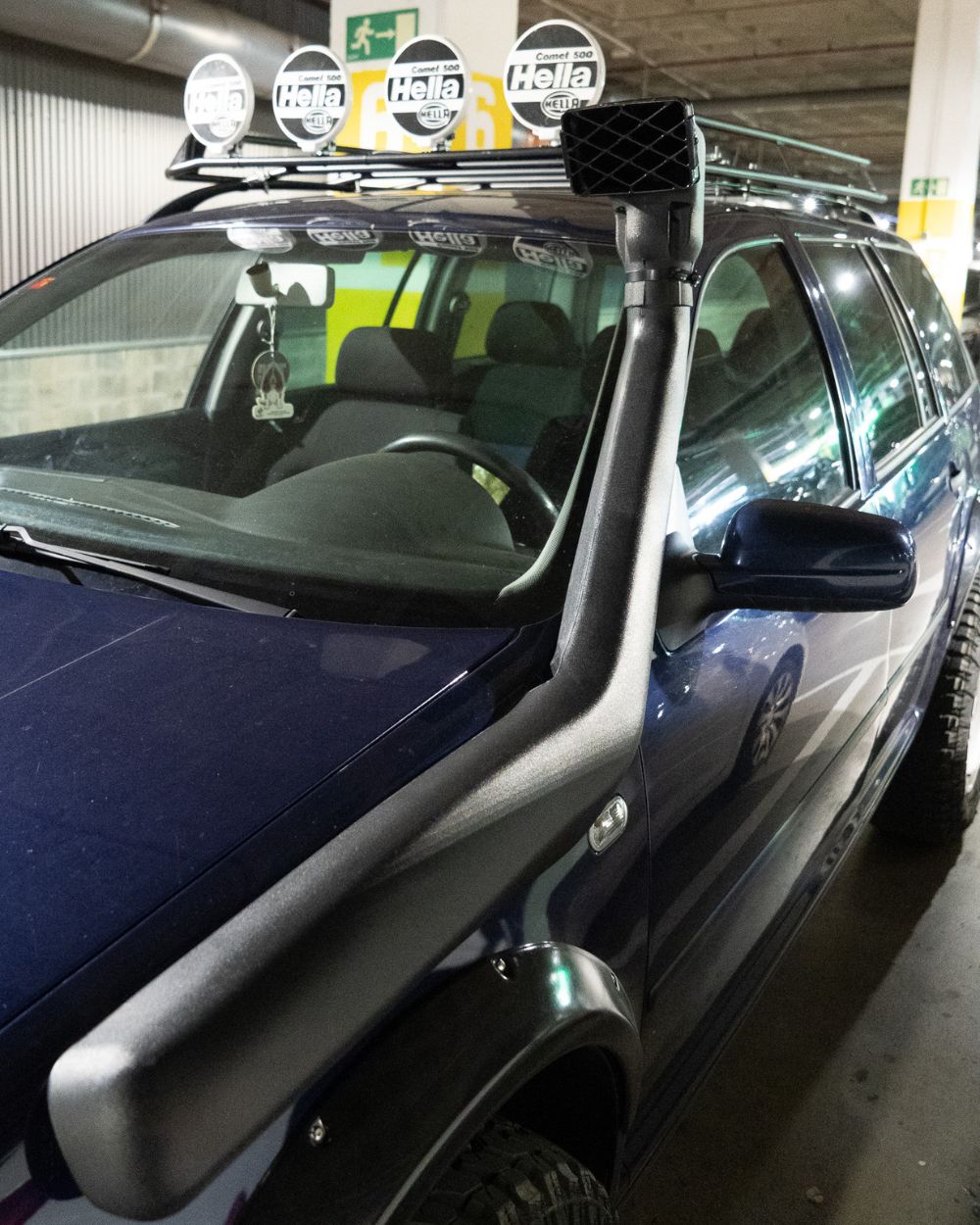

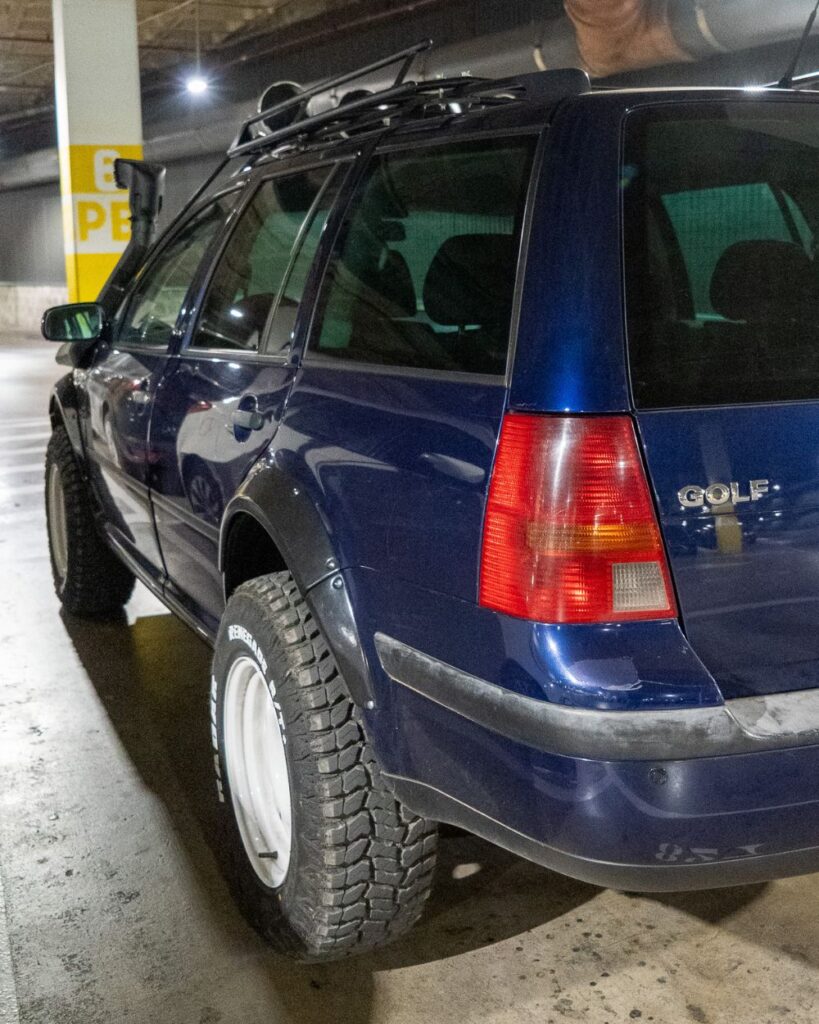

Everything about it was intact with legit body-on-frame 4×4 rigs, meaning it featured everything one may need in a fully-functional off-road vehicle from the lift and meaty tires to a snorkel, roof rack and fender flares. Read on to find out more about this quirky yet surprisingly capable build.

The Build

Built by a hands-on mechanic and automotive enthusiast Jorge Eixea Rovira, this Golf was put together with one specific goal — to compete in the Golf Challenge, an off-road race that takes place yearly in Morocco (this north african country somewhat similar to what the Mexican Baja is for Americans). Let’s take a closer look at how every aspect of this build came together.

Suspension

On the stock car, the ground clearance is only about 5.5 inches depending on whether it comes with a rough roads package or not. Of course, for a vehicle that gets off-road use it’s way too small, so the owner tackled it with new suspension components all around.

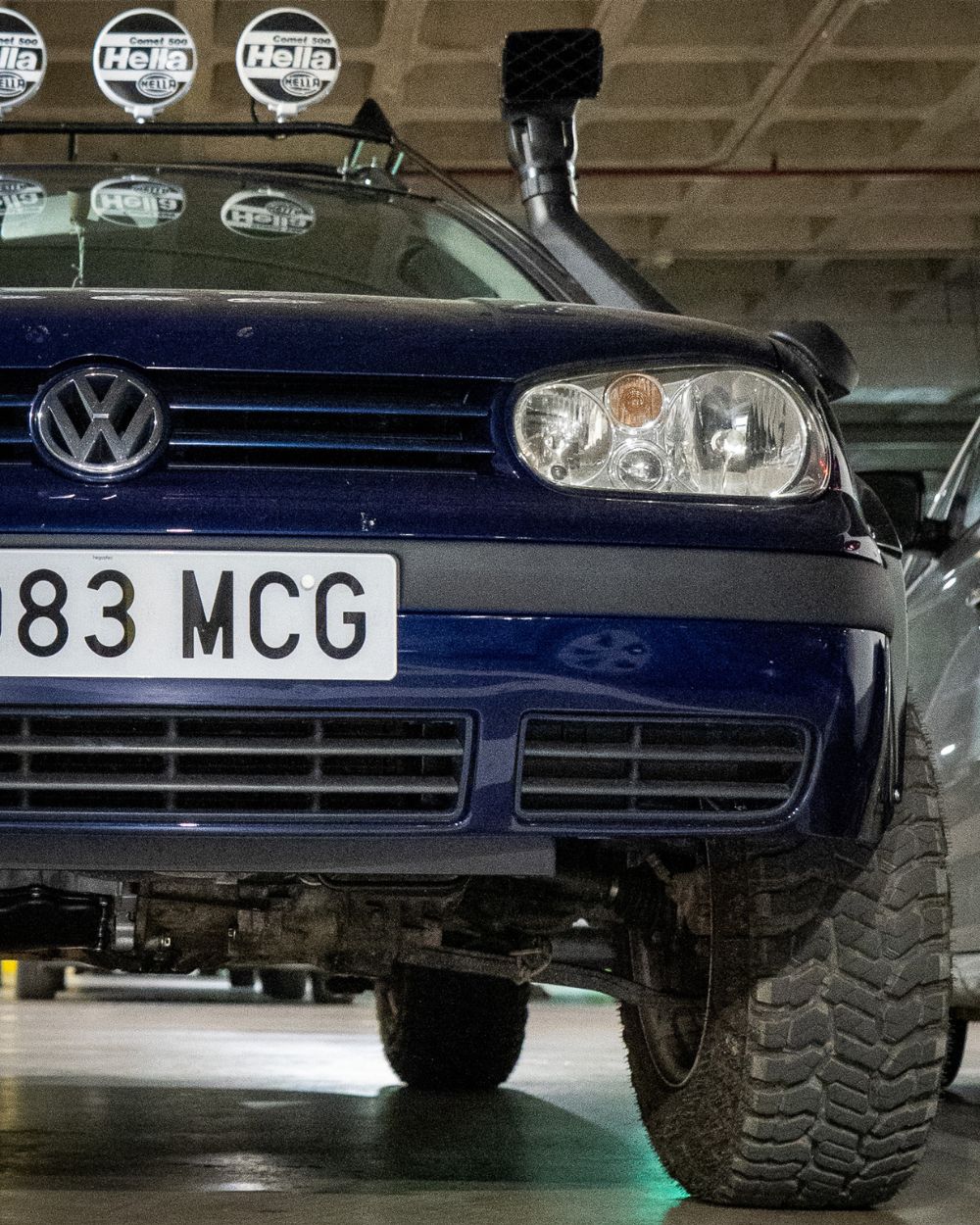

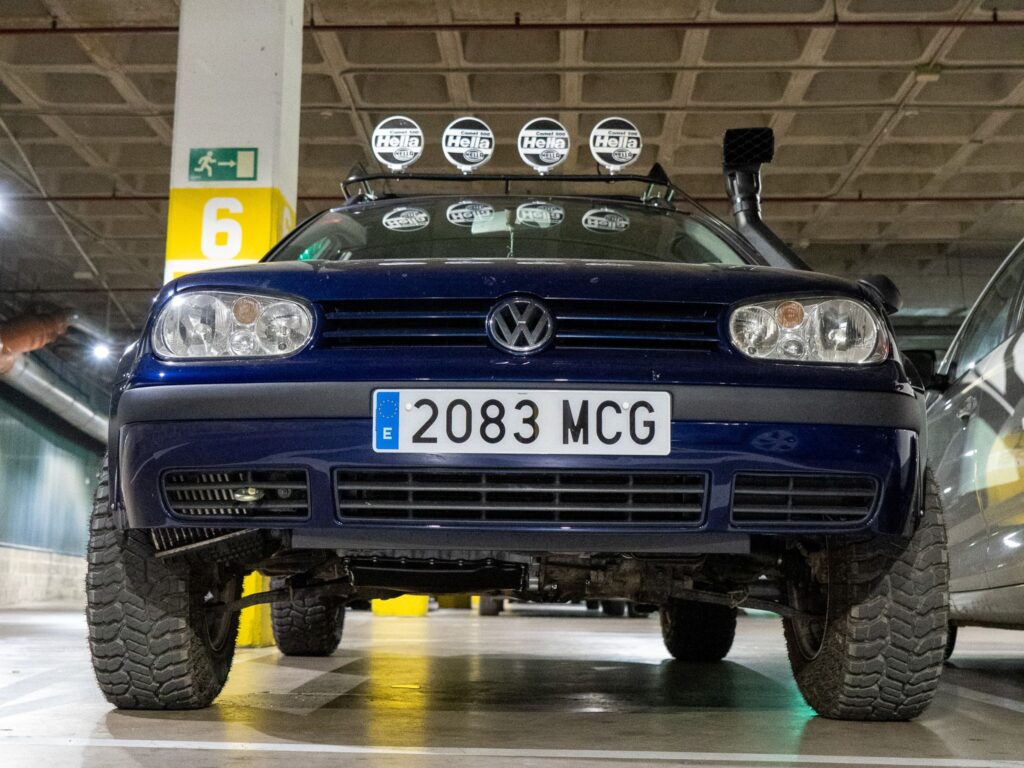

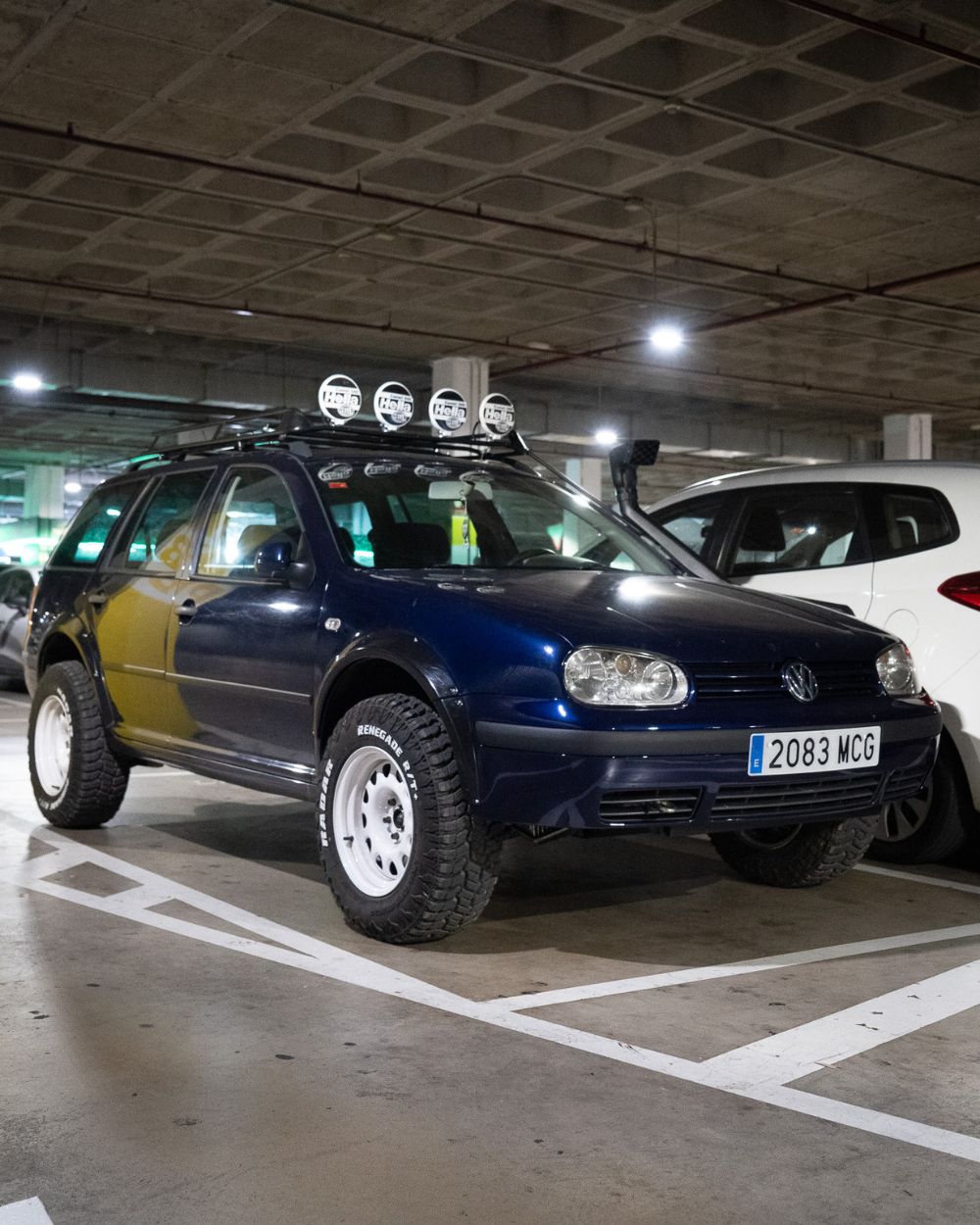

The front features extended struts along with longer springs, while the rear got long-travel struts accompanied by a set of heavy-duty springs with a higher weight rating to support the extra gear. In total, it gave the car an additional 2-3 inches of lift, setting it into the same ground clearance category as many AWD crossovers and even some body-on-frame 4×4s in the stock form.

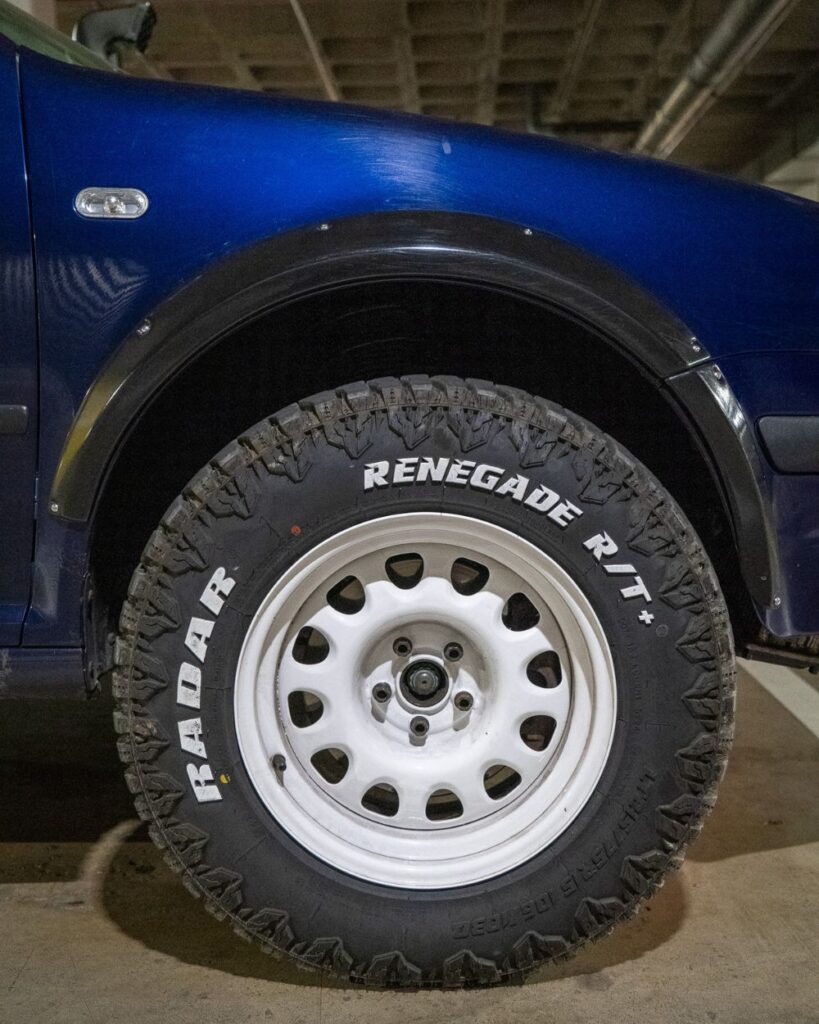

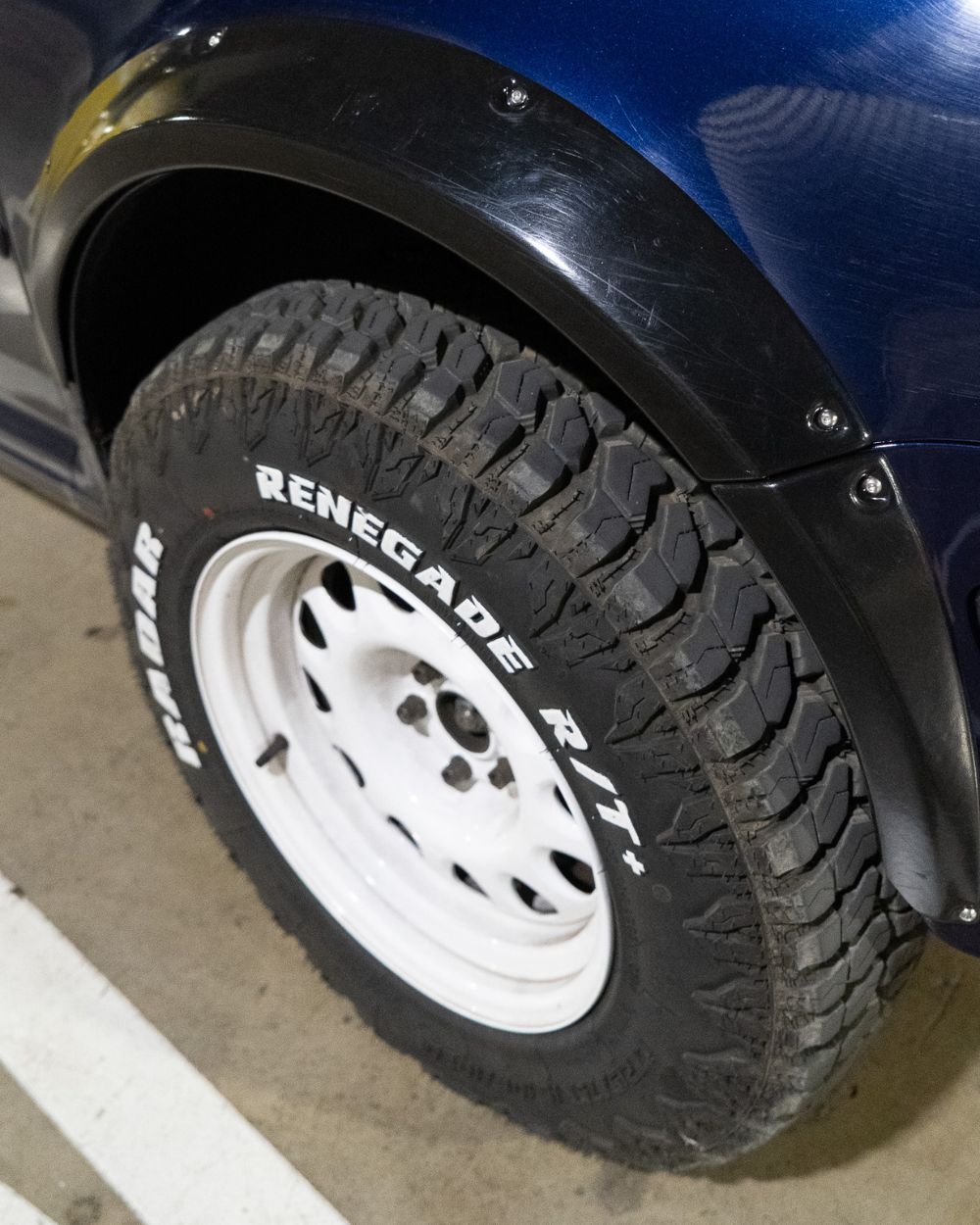

Wheels & Tires

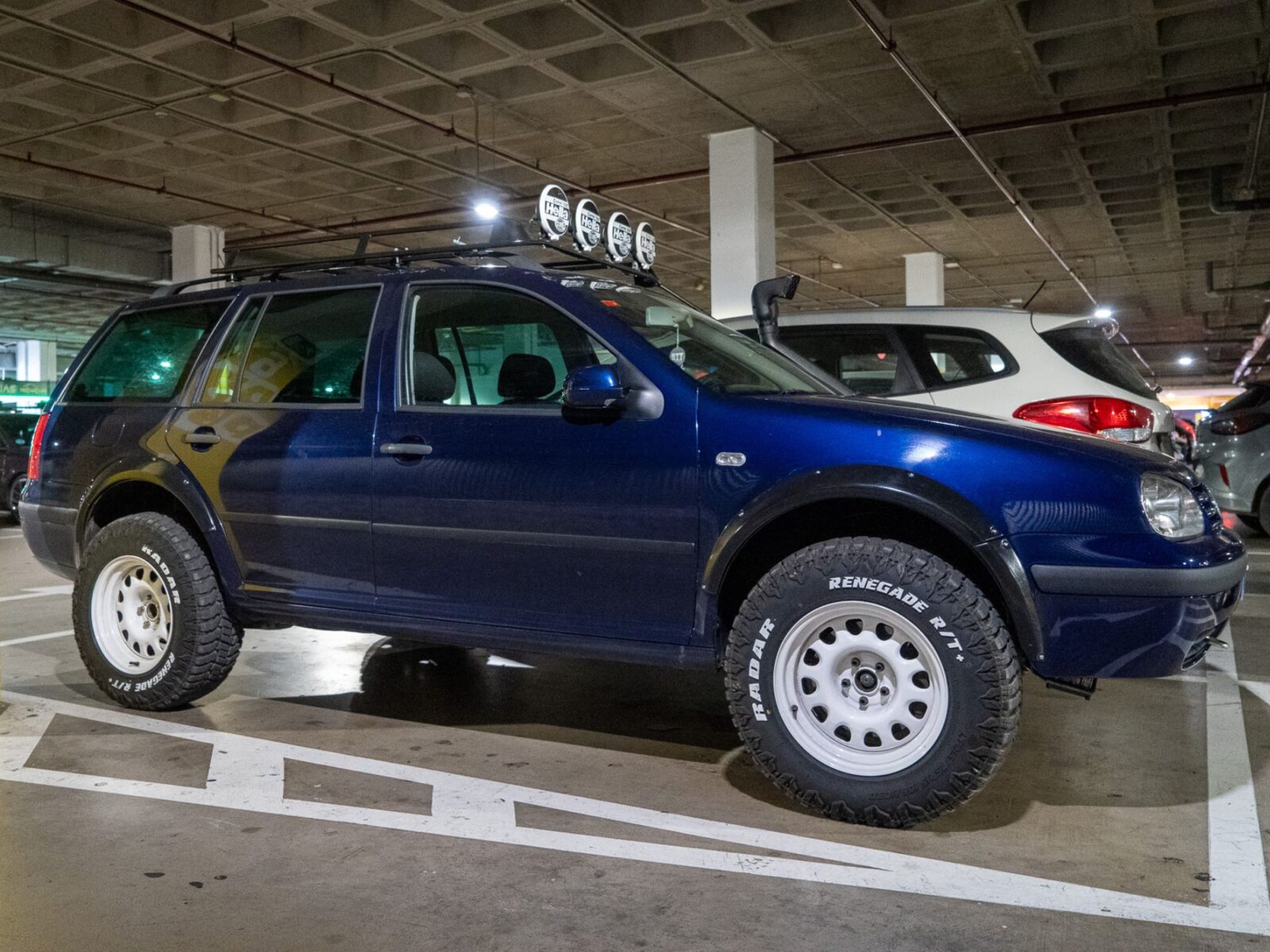

The overall diameter measures roughly 27.7 inches, which is quite the jump from the stock 25s, instantly adding about 1.3 inches of ground clearance on top of the suspension lift. A set of 20mm rear wheel spacers was added to widen the track and improve stability.

Exterior

Mated to a 5-speed manual, it’s a perfect combo for an off-road vehicle, allowing slow-speed crawling when aired down.

Drivetrain

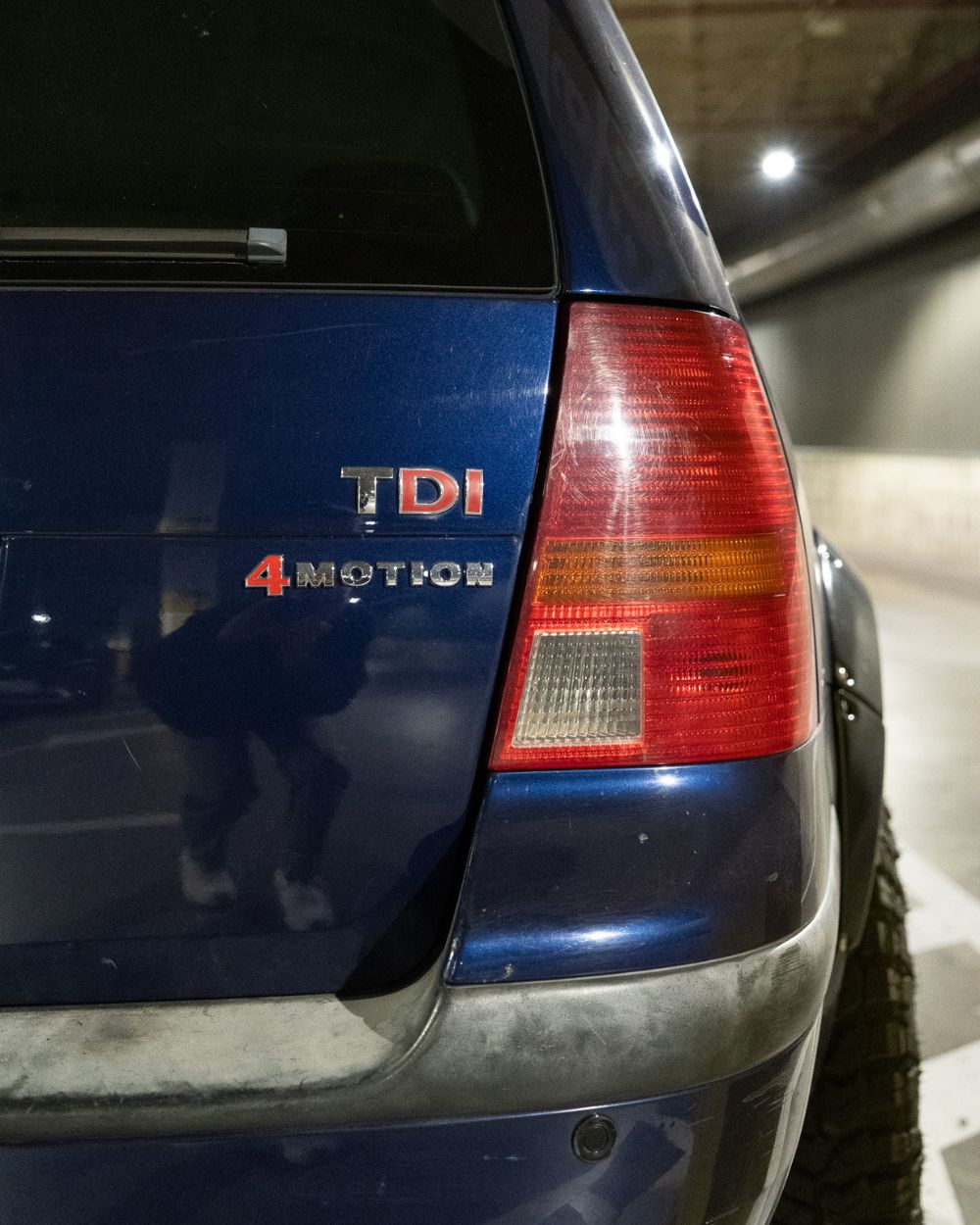

Looking at the car from behind, a 4motion badge caught my eye, which made me wonder, is it indeed an all-wheel drive, or just a badge from a Touareg or a Transporter hanging on an FWD car (let’s face it, such things happen in the car community). But after a quick talk with the owner, it turned out that this Golf Variant is the real deal.

Being equipped from the factory with VW’s signature 4motion all-wheel drive, it became a highly sought-after model among the Golf fans. While it’s certainly not designed as a true off-roader, the combination of the legendary ASZ engine and the 4motion system makes it a surprisingly capable car for gravel, snow, and light trails.

This MK4 uses a Generation 1 Haldex system which employs a reactive action, unlike the predictive electronically controlled all-wheel drive systems on modern cars. This means that it works on demand when the system detects a certain degree of a wheel slip. 90% of power is sent to the front wheels by default, after the rear axle is engaged, the torque can be split 50/50 between the front and rear.

Even though it’s an early 2000s car, it does employ an electronic differential which uses the ABS system to brake a spinning wheel, mimicking a limited-slip diff in the same way as it’s done on modern crossovers such as a Subaru Forester.

All this along with the off-road modifications makes this Golf easily keep up with a lot of modern crossovers and even proper 4×4s. But the low weight of under 1.5 tons gives it an edge over the rest for rally-style driving and light trails.

Weight does matter when you’re driving through the sand, and it makes a difference whether you bog down or keep pushing — that’s a simple truth proven by buggies that often aren’t even 4×4.

Offroadium Benchmark

When compared to top-of-the-line dedicated off-road 4×4s, this MK4 Golf scores 35 points out of 70 possible based on our off-road capability rating for modified vehicles — after all, it’s basically an all-wheel-drive wagon not intended for serious off-roading (no low range or lockers).

Don’t let that number fool you though — with its light weight and torquey diesel, this thing can easily keep up with rigs that score much higher on paper when taken out in the desert. The weight-to-capability ratio in this Golf is something many full-size 4×4s can only dream of.
