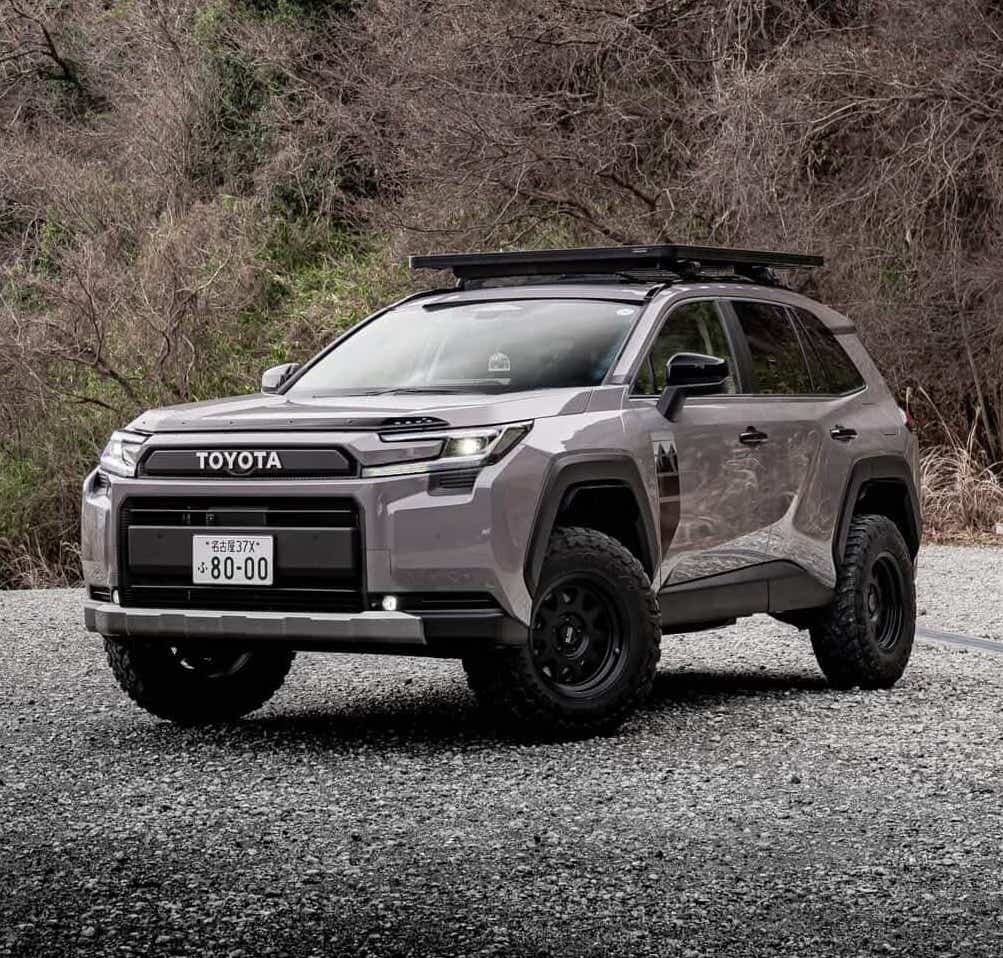

The first Lifted 2026 Toyota RAV4 6th Gen Modified for Off-roading

If you were to ask me what’s the best-looking midsize crossover, I would definitely say a Toyota RAV4. Without any doubt, Toyota has found a pretty cool design language – they started it in the 5th generation, and it has gradually evolved into the new 2026 6th generation XA60 model, which preserved the signature proportions and received a complete front and rear makeover.

While the majority of new XA60 RAV4 owners are getting used to their new crossovers and possibly looking up some accessories for it like floor mats, early adopters like Keita Yamamoto-san from Aichi, Japan, are already looking at some serious off-road modifications.

Key mods:

• TOYO Open Country M/T 30.5″ tires
• 5th Gen RAV4 suspension lift
• Off-road capability Score 25/70
• Estimated build budget: $3,250 and $4,900

Being no stranger to hitting the dirt in a RAV4, he knows exactly what the platform is lacking and what tweaks need to be made to make it truly off-road worthy. In the past he’s gone through two XA50 5th generation RAV4-based off-road/overland builds, so it was just a matter of time until his new 2026 got the off-road treatment. Read on to find out more about the ins and outs of his build.

6th Gen Differences

With the new 2026 model becoming even more rugged-looking and attractive — thanks to merging the style elements of full-size Toyota and Lexus 4x4s, it represents a significant shift toward hybrid territory, meaning that common gas-only powerplants are no longer offered globally. What this means for off-roading is that there is no longer a physical link between the engine and the rear wheels.

The 2.5L engine is paired with an electric MG2 motor driving the front wheels only, while the rear wheels are driven by an independent high-torque rear electric motor, the MGR. When the vehicle’s ECU detects wheel slip via the traction monitor, it can instantly send up to 80% of total torque to the rear wheels, so in essence the RAV4 is primarily a front-wheel-drive vehicle that “adds” rear power via electric motor.

E-Four (electric 4WD) precisely controls front/rear driving force distribution between 100:0 and 20:80, achieving high levels of acceleration from start and cornering stability. Furthermore, it comes equipped with TRAIL and SNOW driving control modes, which deliver superior escape and stability on rough or snowy roads by applying brakes to spinning wheels and redirecting drive torque to the opposite wheels. – Toyota Newsroom

That’s impressive in theory, but in practice you’re dealing with a sophisticated traction management system, not a mechanical AWD setup. It does react fast, but there are physical limits to what the rear motor can produce in sustained low-speed torque situations while crawling through obstacles.

Just like all previous models, this generation of the RAV4 is not equipped with low range or locking differentials. However, the Adventure trim features an enhanced Trail mode which manages braking of individual wheels to optimize torque distribution from the rear motor, mimicking a limited-slip differential.

Besides that, it also comes standard with hill descent control, which maintains a constant low speed when descending steep, slippery grades without the driver needing to touch the brakes. This feature is heavily underestimated by many drivers, although it makes a huge difference in real-world conditions, especially when the tires don’t provide enough grip on the surface.

The Adventure trim sits at 215 mm (8.5 inches) of ground clearance, slightly higher than the standard RAV4 trims, which measure around 205 mm. The so-called new Hammerhead redesign improved the approach and departure angles slightly over the outgoing 50-series, bumping them to approximately 19.0° and 21.5° respectively.

The Build

Being a huge fan of the model, Keita-san switched from the XA50 (see his previous Rav4 build here) to the XA60 as soon as it became available at his local dealership. This time he picked the Adventure trim in the new Urban Rock color scheme, which blends the utilitarian styling of the new model with its upgraded design elements perfectly.

With an active lifestyle and a background of modifying his crossovers for off-roading, it was no surprise that his new vehicle didn’t remain stock for long.

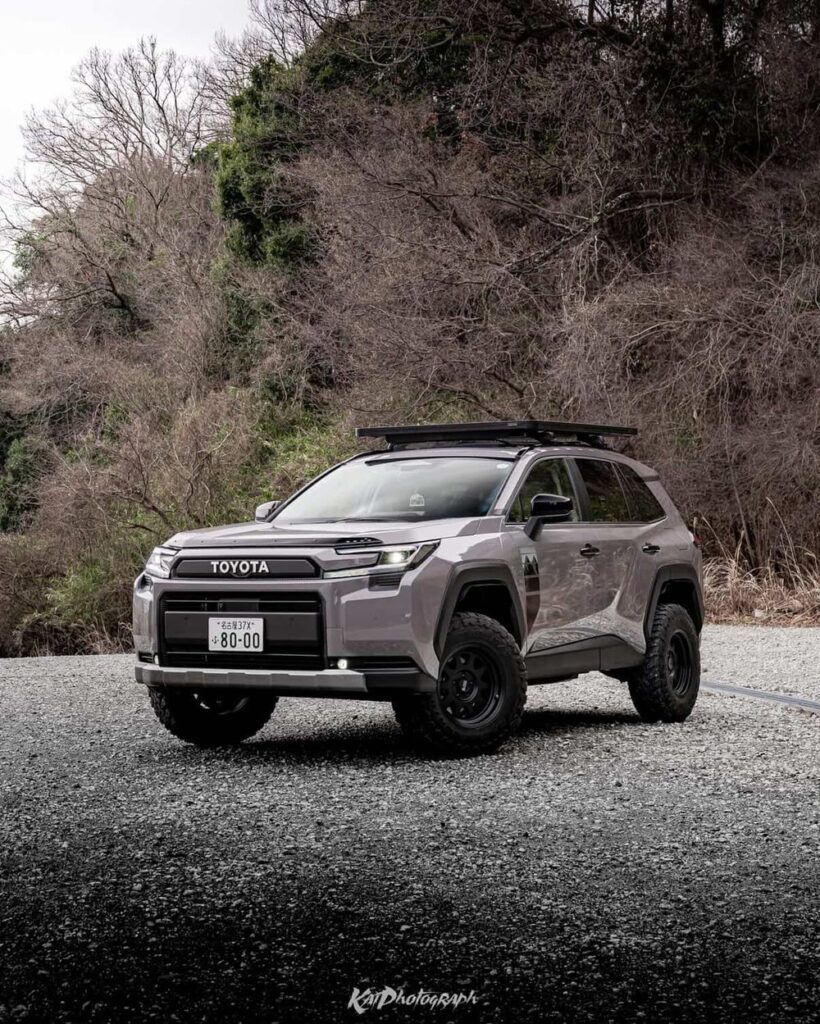

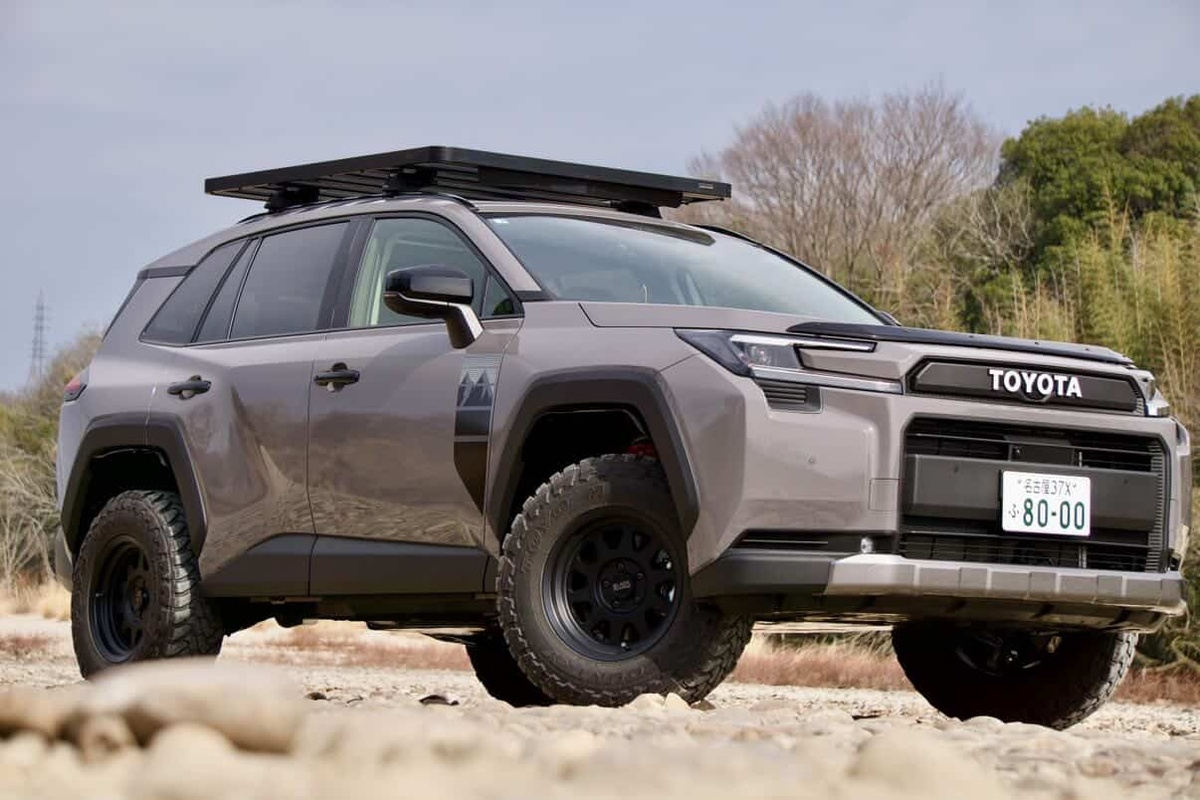

Suspension Lift

Budget Estimate

If you’re thinking about installing a similar suspension lift, based on my experience the estimated budget for this modification lays around $300–$600 depending on the brands and components you choose.

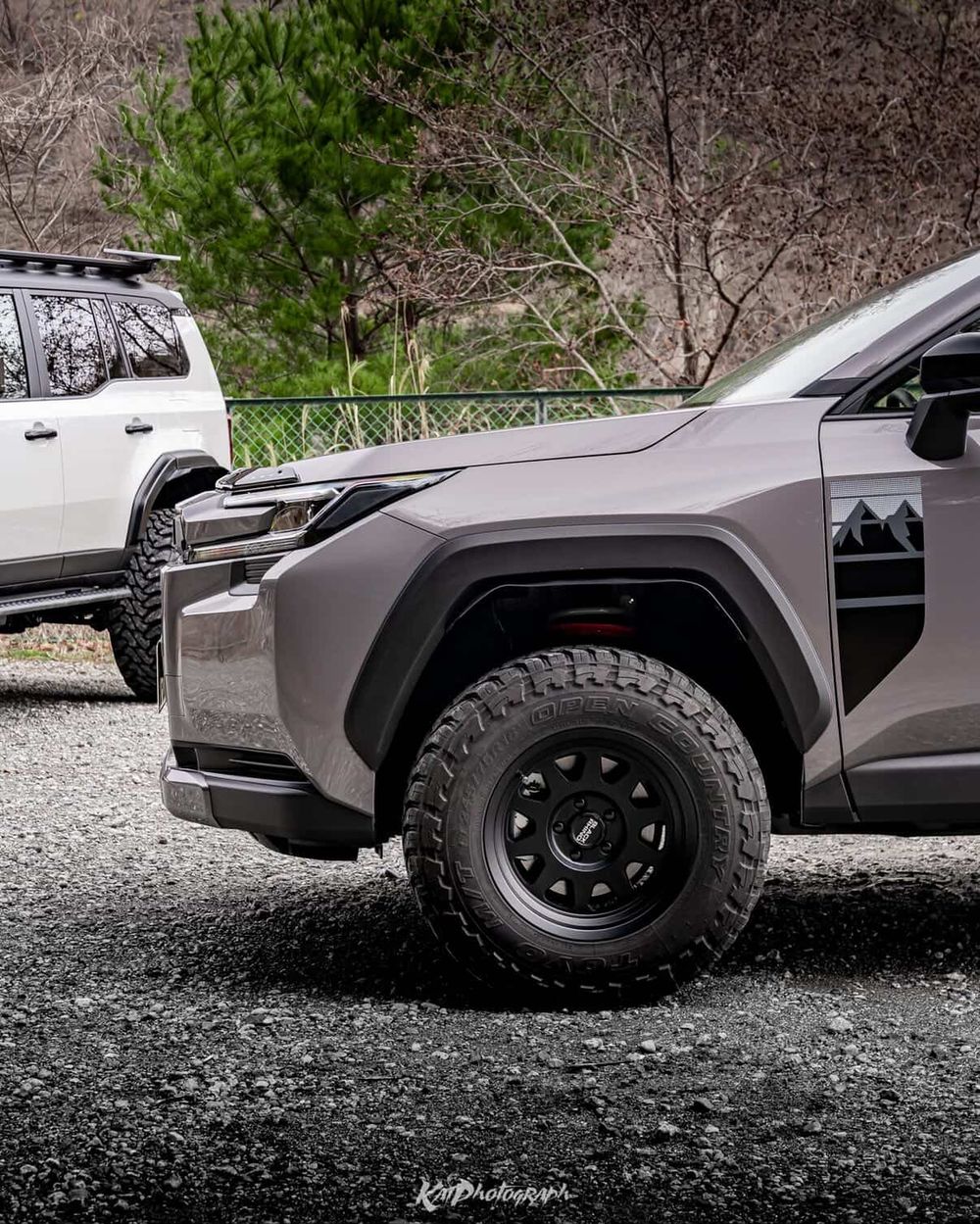

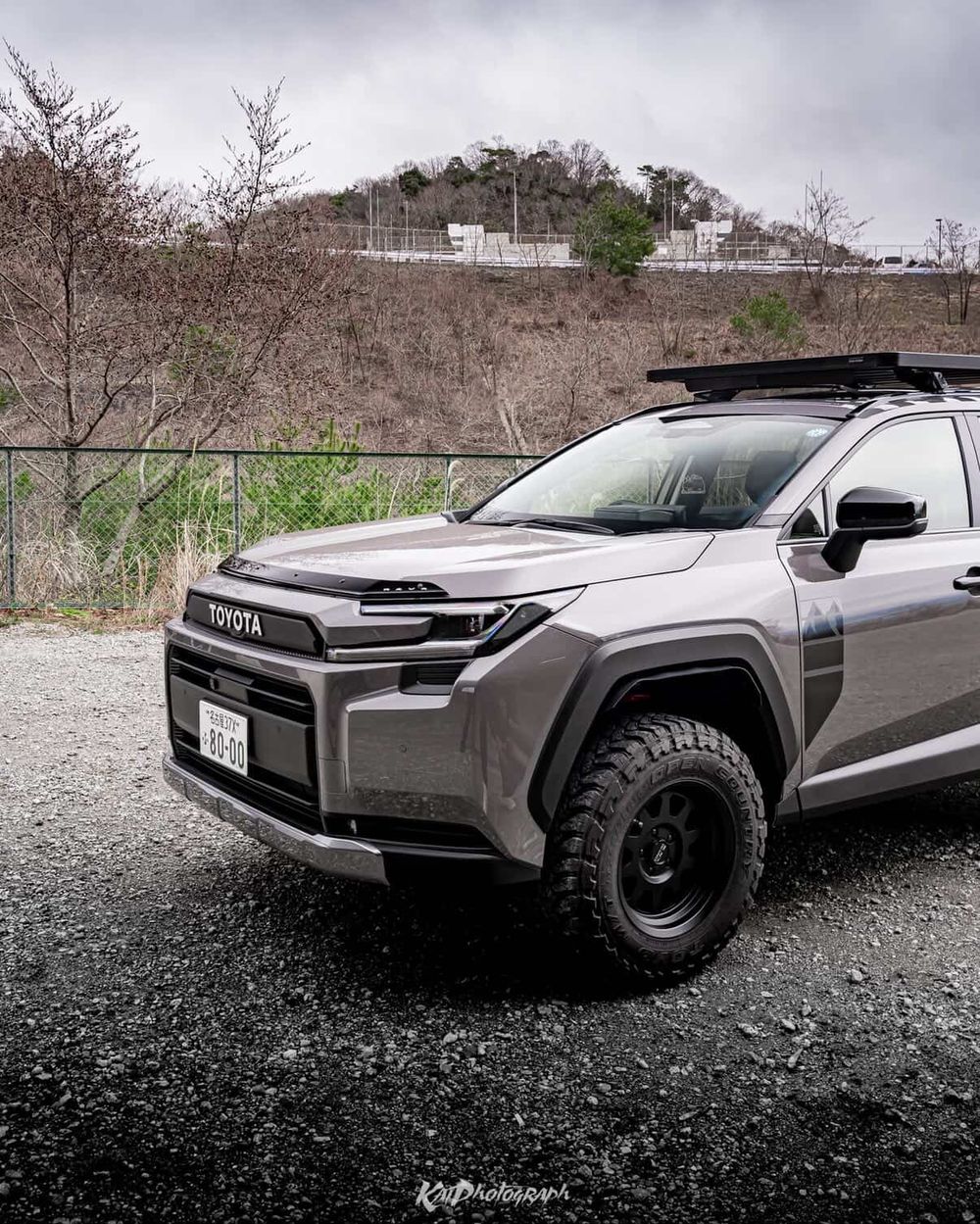

Wheels & Tires

This whole setup provides numerous benefits over the stock wheels. First, they provide ultimate traction on any sort of terrain, be it sand, snow, or dirt helping you get going even without relying on supplementary technology.

Second, the extra-tall 75-series profile on 16″ rims offers plenty of room for airing down, a tried-and-tested trick to improve the tire-to-ground contact patch and gain even more traction when getting stuck is inevitable.

Being almost 1.4″ larger in overall diameter, these wheels also raise the lowest contact point of the underbody by about ¾ of an inch, bumping the clearance to over 9″ in total — putting the RAV4 in the territory of proper 4×4 SUVs.

Budget Estimate

As usual, the wheels-and-tires package takes up the biggest chunk of the build budget. This particular combo of Toyo M/Ts with Black Rhino Stadium rims can cost anywhere from $1,800 up to $2,800 depending on where you source them.

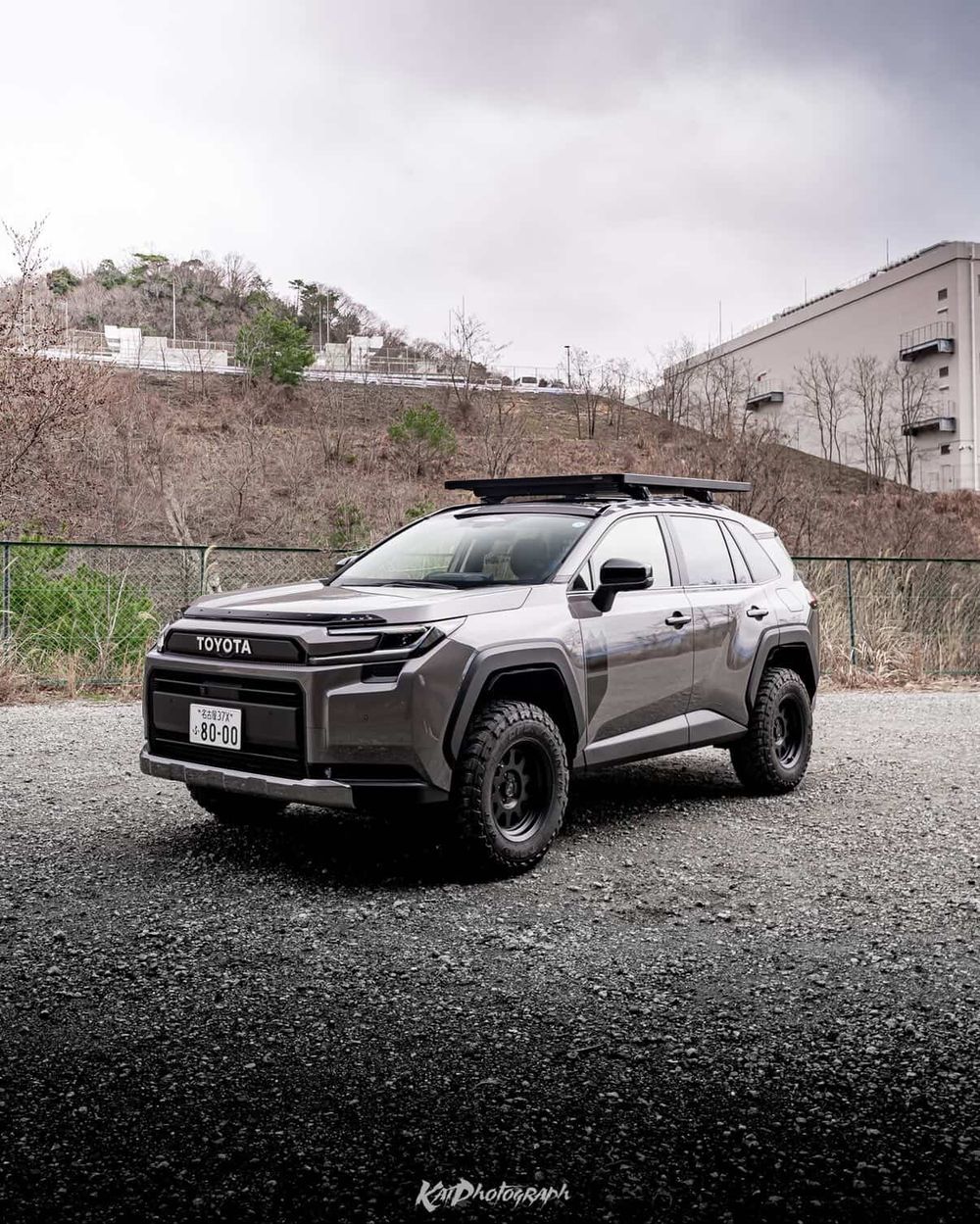

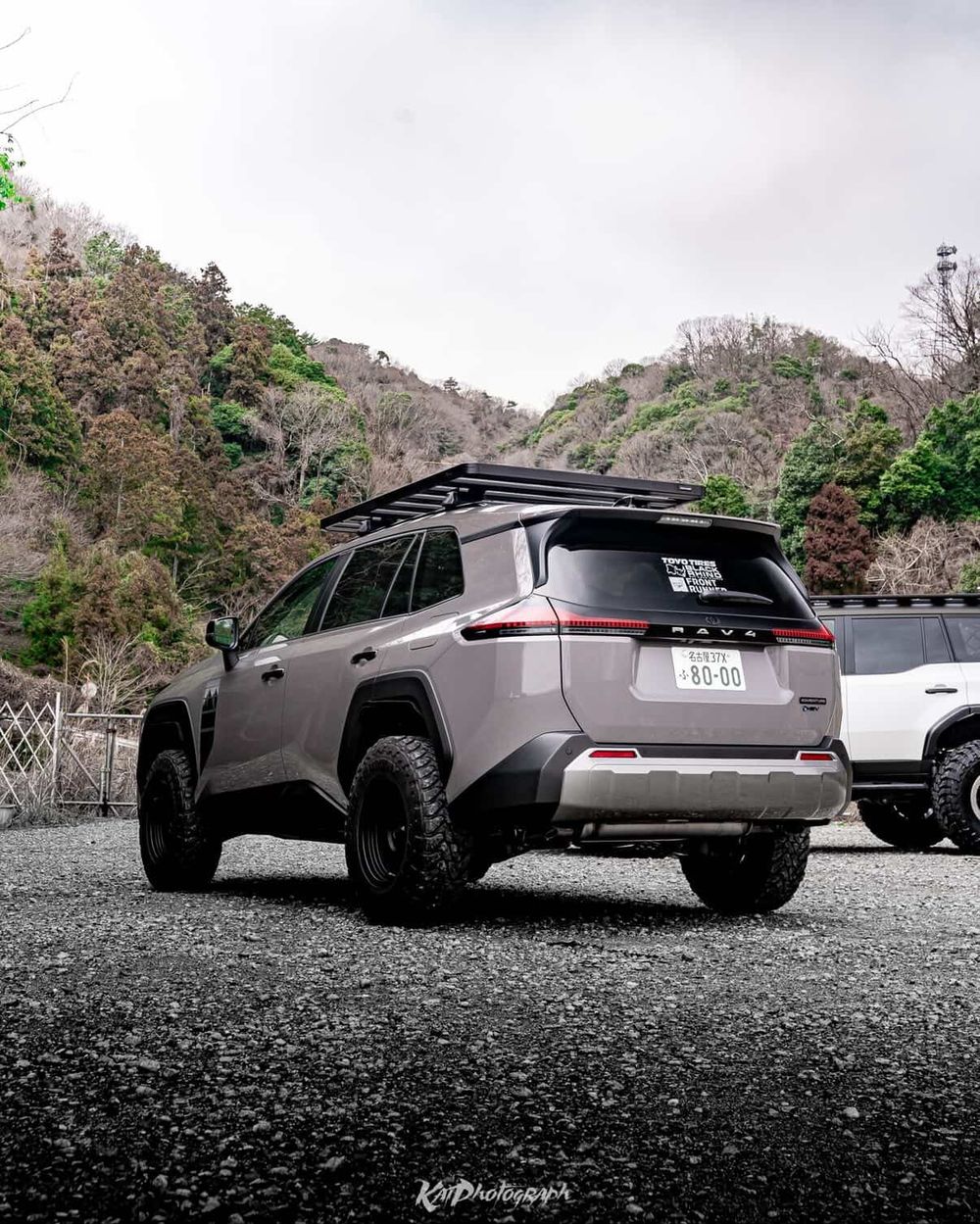

Among other exterior modifications is the handy Front Runner Outfitters roof platform, which allows loading up adventure gear and storage cases for outdoor adventures and camping trips.

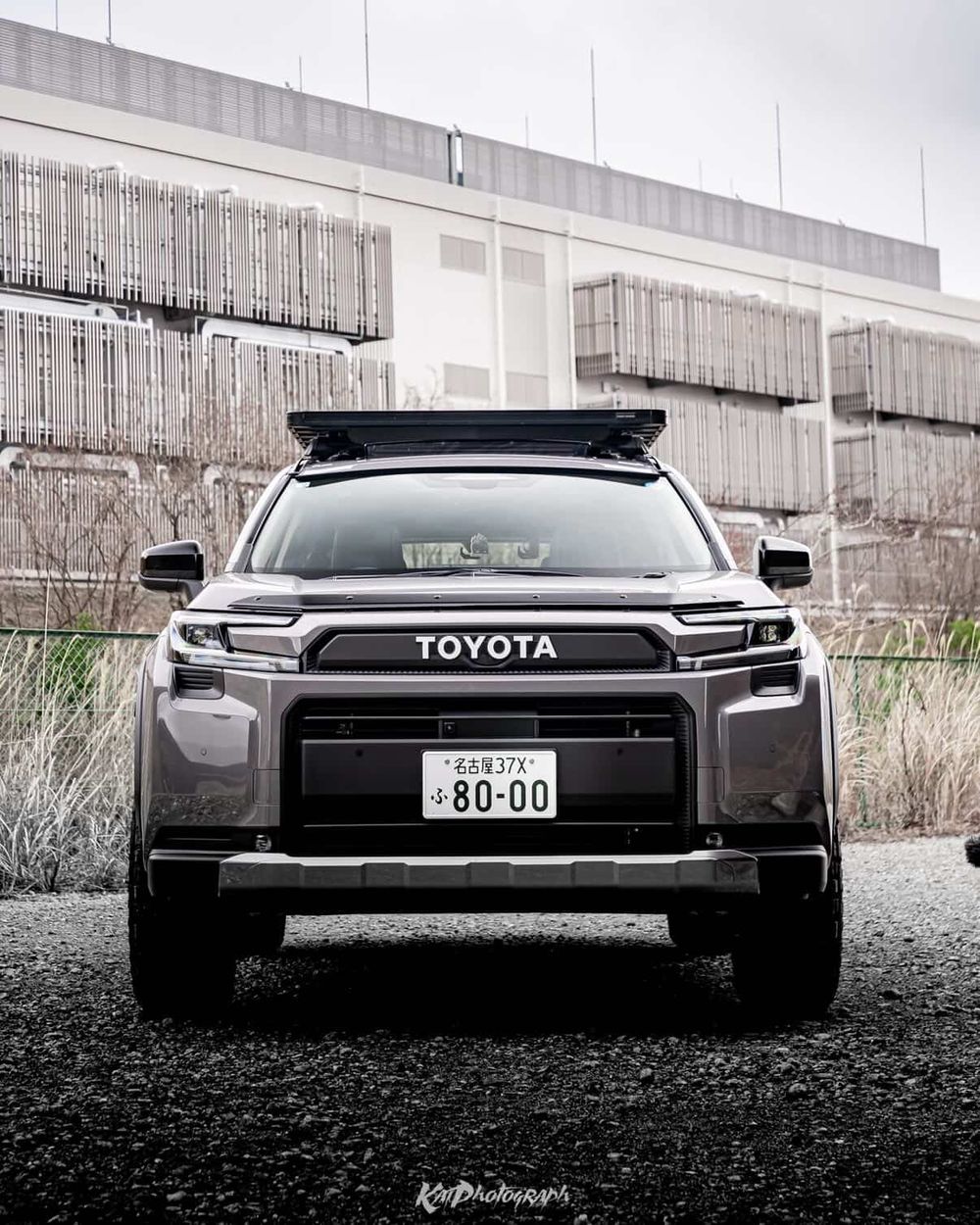

Another custom touch is the genuine Toyota bug guard sitting on the hood, which adds a few points to the rugged look of this RAV4 build.

Final Thoughts

What we see here is one of the first off-road builds based on the 6th generation 2026-and-up Toyota RAV4, and boy, does it look good. Thanks to Yamamoto-san’s experience with previous generation RAV4s, he bumped up the off-road capabilities of his new crossover with relatively little effort by transferring the majority of the components from his previous build.

I’m sure many potential RAV4 buyers and owners are scratching their heads about aftermarket modifications that haven’t been confirmed yet for the 6th gen, but this example clears up quite a lot, showing that the chassis didn’t undergo drastic changes, and that with some caution, some 5th gen RAV4 components can still be used on the 6th generation model.

Off-road Capability Score

Due to Toyota shifting toward a non-linked front-rear axle architecture, the off-road capabilities of the new model may be slightly compromised. This, along with the absence of low range or lockers, doesn’t allow the RAV4 to be called a dedicated off-road vehicle (it scores 25 out of 70 on our overall off-road capability benchmark). That said, it has a lot to offer for the day-to-day needs of a person with an active lifestyle who occasionally takes their RAV4 off the paved roads.

With that in mind, in this build Yamamoto-san has addressed the weakest point of all modern unibody crossovers — ground clearance. The suspension lift along with the oversized wheels improved the ride height as well as the approach and departure angles, opening up more complex roads and trails for the driver.

Budget Estimate

All in all, Keita-san’s 6th gen RAV4 build is a great example to follow, both style- and modification-wise. If you’d like to build something similar from the ground up, prepare to spend somewhere between $3,250 and $4,900 based on our budget estimation.

Watch the progress and find out more about this Toyota RAV4 Adventure off-road build by visiting the Instagram profile of the owner: @ke.i.ta.ymmt
